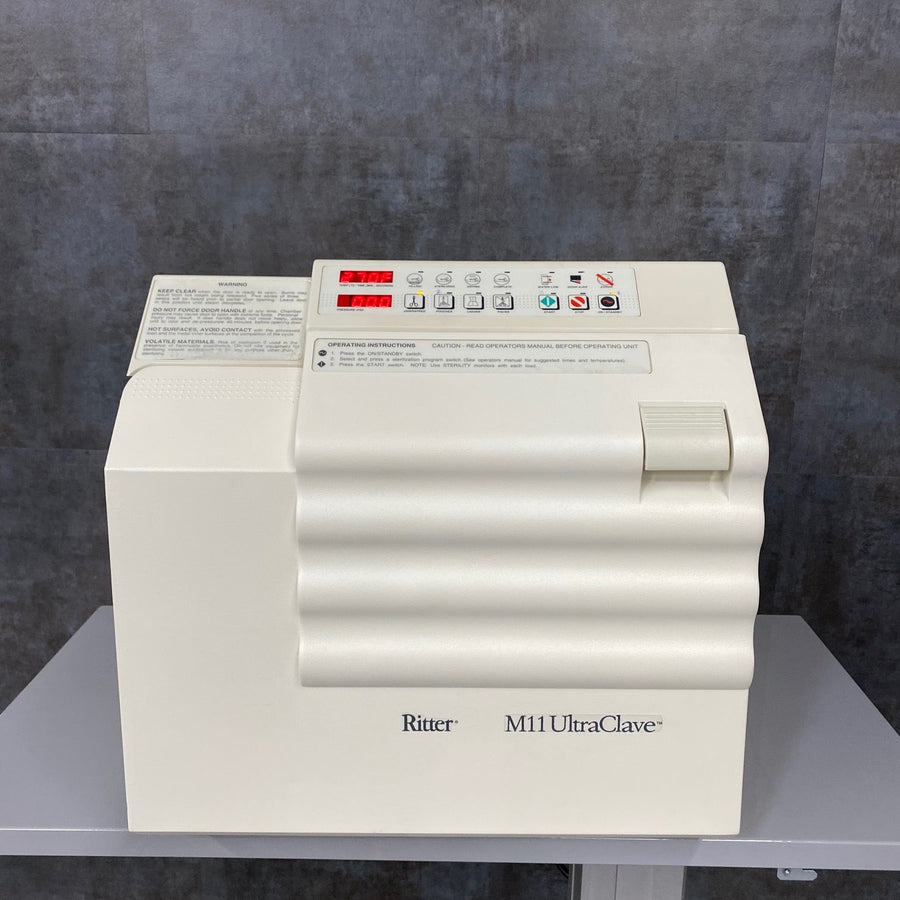

Technical Specifications of the Midmark Ritter M11 Autoclave
Capacity and Chamber Size
-
Volume: 28.3 liters (7.5 gallons)
-
Chamber Dimensions: 279 mm diameter x 457 mm depth (11 inches x 18 inches)
This capacity is suitable for small to medium-sized loads, making the Midmark M11 ideal for dental practices, small clinics, and laboratories that require efficient sterilization of instruments and equipment. The M11 model ensures reliability and high performance in various medical and laboratory settings.
Temperature Range
- Operating temperature ranges from 110°C to 135°C (230°F to 275°F).
These temperatures are sufficient to ensure the destruction of a wide range of microorganisms, including highly resistant bacterial spores. The M11 sterilizer operates by using saturated steam to denature proteins and disrupt cellular structures, ensuring effective sterilization. The Ritter M11 sterilizer is designed to handle these high temperatures, making it a reliable choice for thorough sterilization.
Pressure Range
- The working pressure range is approximately 1.0 to 2.2 bar (14.5 to 32 psi).
Pressure is a critical component in achieving the necessary high temperatures for sterilization. The Midmark M11 utilizes increased pressure within the chamber to raise the boiling point of water, allowing the steam to reach higher temperatures and penetrate materials more effectively. The Ritter M11 autoclave ensures efficient and thorough sterilization through this advanced pressure mechanism.
Cycle Types and Control System
-
Pre-set Cycles: The Midmark Ritter M11 features several pre-programmed cycles tailored to different types of loads, such as wrapped instruments, unwrapped instruments, packs, and liquids.
-
Customizable Cycles: Users can customize cycles to meet specific sterilization needs, adjusting parameters such as temperature, pressure, and duration.
-
Control System: The autoclave is equipped with a microprocessor control system that accurately manages the operating parameters. The digital interface provides real-time monitoring and adjustments, ensuring precise control over the sterilization process.
Safety Features
-
Automatic Shut-off: The autoclave automatically shuts off at the end of the sterilization and drying cycles to prevent overheating and overuse.
-
Safety Valve: Prevents over-pressurization by releasing excess pressure, thereby protecting the system and ensuring user safety.
-
Door Safety Lock: Ensures that the door cannot be opened while the chamber is pressurized, preventing accidents and ensuring safe operation.
Construction
-
Materials: The autoclave is constructed from high-quality stainless steel, which provides resistance to corrosion and ensures durability under high-pressure and high-temperature conditions.
-
Design: The compact design facilitates efficient use of space and ease of operation, with an intuitive loading and unloading process.
Principles of Operation
Sterilization by Saturated Steam
-
Mechanism: The primary sterilization method used by the Midmark Ritter M11 involves saturated steam under pressure. The steam transfers heat to the items within the chamber, and the combination of high temperature and moisture denatures proteins and disrupts cell membranes and DNA, leading to effective sterilization.
-
Temperature and Pressure Correlation: The autoclave operates on the principle that water boils at higher temperatures when under increased pressure. By raising the pressure within the chamber, the boiling point of water (and thus the temperature of the steam) increases, enabling the steam to achieve the necessary conditions for sterilization.
Microprocessor Control
-
Function: The microprocessor control system manages the cycle parameters (temperature, pressure, and time) with high precision. It receives input from sensors within the chamber and adjusts the heating elements and valves to maintain the desired conditions.
-
Advantages: This control system enhances the repeatability and reliability of the sterilization cycles, ensuring consistent performance and effective sterilization across different loads and materials.
Heat Transfer and Moisture Penetration
-
Heat Transfer: Effective sterilization requires uniform heat distribution. The autoclave’s design ensures that steam circulates throughout the chamber, transferring heat to all surfaces of the items being sterilized.
-
Moisture Penetration: Moist heat (steam) is more effective at penetrating materials than dry heat. The steam condenses on cooler surfaces, releasing latent heat and ensuring thorough sterilization of complex instruments and porous materials.
Midmark M11 Sterilizer
Make Midmark Ritter M11 autoclaves and M11 sterilizers the top choice for your medical office! With a wide selection of products and services from AngelUS Medical, you can ensure all equipment is up-to-date and well-maintained. Our experts will help you select the perfect autoclave or sterilizer (Midmark M11, Midmark autoclaves, Ritter M11 steam sterilizer) at unbeatable prices. Our customers have seen great results and you can too. Get in touch with us and our friendly staff will be happy to answer any questions and help you find what you're looking for. Let AngelUS Medical be your go-to source for all sterilization requirements!
- Your autoclave needs repair? Contact us to schedule your service.
- Want to see this unit? contact us to schedule a video call to see this unit.
Specialty / Medical Practice
General Practice, OBGYN, Dental, Surgery Center, Emergency Medicine, and more
Importance of Features and Specifications
-
Product Usage: Sterilization of instruments
-
Brand: Midmark Ritter
-
Warranty: 90 days parts and labor
-
Dimensions:
- Chamber: 11" x 18"
- 17.8" x 23.8" with plug x 17.9" with Printer
-
Includes:
- 20 self-seal sterilization pouches
- Box of autoclave cleaner
- 1 Tray
-
Voltage: 120V
-
Days to be ready: 1- 2
-
Compact Capacity: The 28.3-liter chamber size is suitable for smaller practices and clinics, providing sufficient space for daily sterilization needs without requiring a large footprint.
-
Precise Control: The microprocessor-based control system ensures that all parameters are tightly regulated, reducing the risk of user error and ensuring consistent results.
-
Safety Measures: Multiple safety features protect both the user and the equipment, making the autoclave reliable and safe to operate in a professional setting.
Related Collections:
Frequently Asked Questions
What is the capacity of the M11 autoclave?
The M11 autoclave has a chamber capacity of 11" x 18" (28 x 46 cm), allowing for the sterilization of a considerable amount of instruments. What sterilization cycles does the M11 sterilizer offer? The M11 autoclave offers a range of sterilization cycles, including unwrapped and wrapped cycles. It also includes special cycles for pouches, handpieces, and delicate materials.
How long does a typical sterilization cycle take with the M11 autoclave?
The M11 sterilizer offers fast and efficient sterilization cycles, with most cycles completing in approximately 20 minutes (excluding drying time). The cycle time may vary depending on the load type and size.
How does the M11 autoclave ensure proper sterilization?
The M11 autoclave features a pre-vacuum air removal system that effectively eliminates air from the chamber, promoting proper steam penetration. It also has an efficient heating system to reach and maintain the required sterilization temperature.
Is the Ritter M11 autoclave easy to use?
Yes, the Midmark M11 autoclave is designed with user-friendliness in mind. It features a user-friendly control panel with intuitive controls, making it easy to select and run the desired sterilization cycle.
What safety features does the Ritter M11 autoclave offer?
The Midmark M11 Sterilizer incorporates various safety features, including a door lock system, automatic shut-off, over-temperature protection, and a built-in, independent steam generator. These features ensure safe and reliable sterilization results.
Can the Ritter M11 autoclave be used with different types of instruments?
Yes, the Ritter M11 autoclave is compatible with a wide range of instruments, including metal, glass, plastic, and rubber items. It can sterilize various medical and dental instruments efficiently.
Does the Midmark M11 autoclave provide documentation and traceability features?
Yes, the Ritter M11 offers a comprehensive documentation system that allows for easy tracking and verification of the sterilization process. It provides printouts of cycle data, load status, and sterilization records.
Do you repair Ritter M11 sterilizers?
Yes, we repair Midmark M11 autoclaves as well as other autoclaves. We provide preventive maintenance for Midmark M11 as well as autoclave repair.
Why should you consider purchasing a Ritter M11 autoclave previous model
The budget friendly Midmark Autoclave Ritter M11 previous model is fully refurbished by Angelus Medical & Optical Equipment fully trained technicians and looks almost new.
The fully automatic sterilizer is ideal for a new office with limited budget. The ease of use means, there is not any special training required and practically anyone will be able to do this task.
The Midmark Autoclave M11 autoclave, also known as the M11 Sterilizer or midmark m11 ultraclave, is a highly reliable and efficient sterilization device. As a leading autoclave in the market, the M11 autoclave is designed to provide superior performance and safety while ensuring the effective sterilization of medical instruments and equipment.
