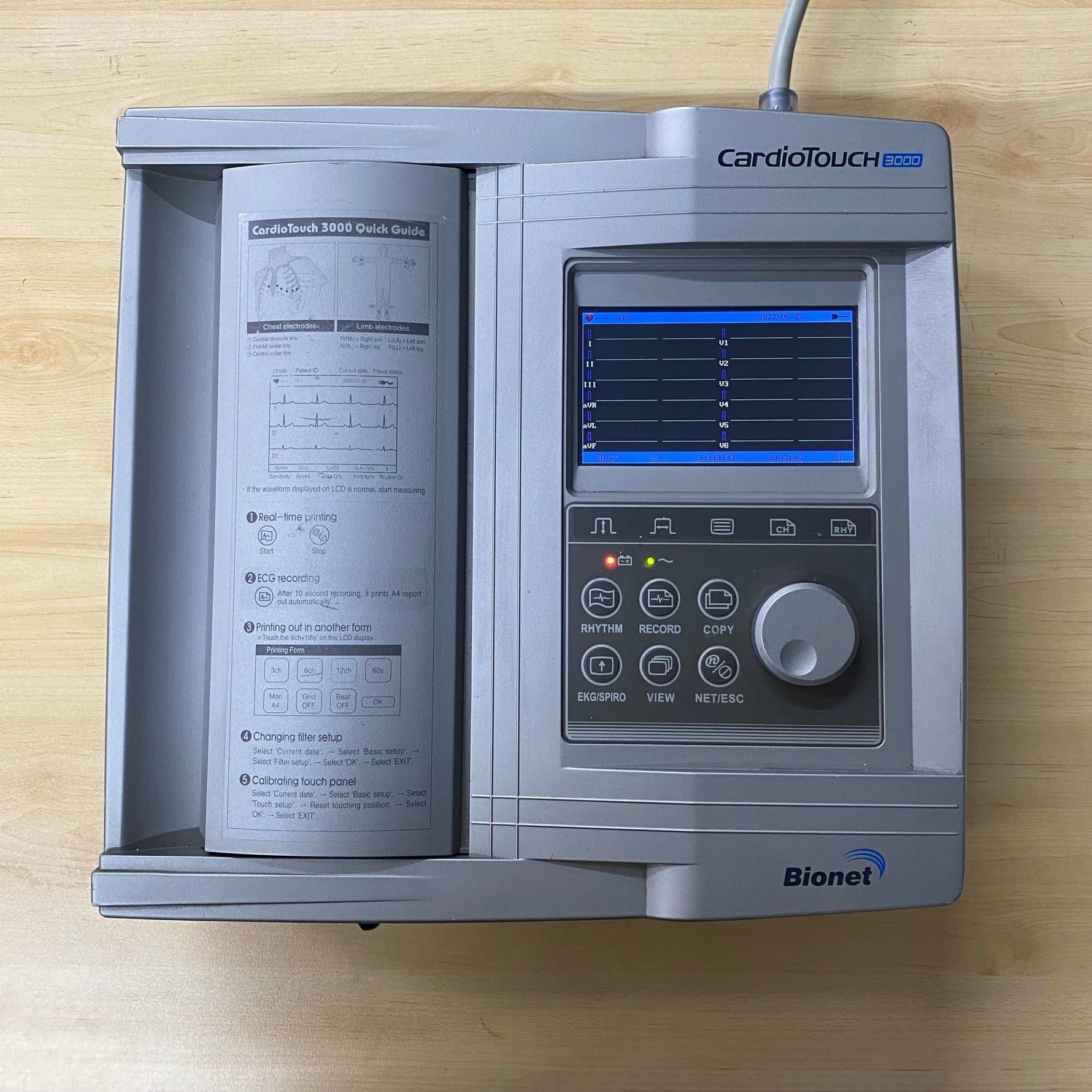

The Refurbished Bionet Cardiotouch 3000 EKG with interpretive 12 channel resting ECG with color LCD Touch screen.
CLEARANCE: Includes 30 days parts & labor Warranty.Features and Benefits
- Touch screen for easy operation
- Wide and clear color TFT LCD
- 12 ch simultaneous display
- Convenient A4 size print-outs allow for easy chart filing
- Grid function allows you to use low cost plain fax paper
- One-touch operation (monitoring, recording mode)
- Over 120 kinds of interpretation results based on advanced Minnesota code
- Memory up to 200 ECGs
- Real-time preview monitor
- Lead fault message
- Pace maker detection

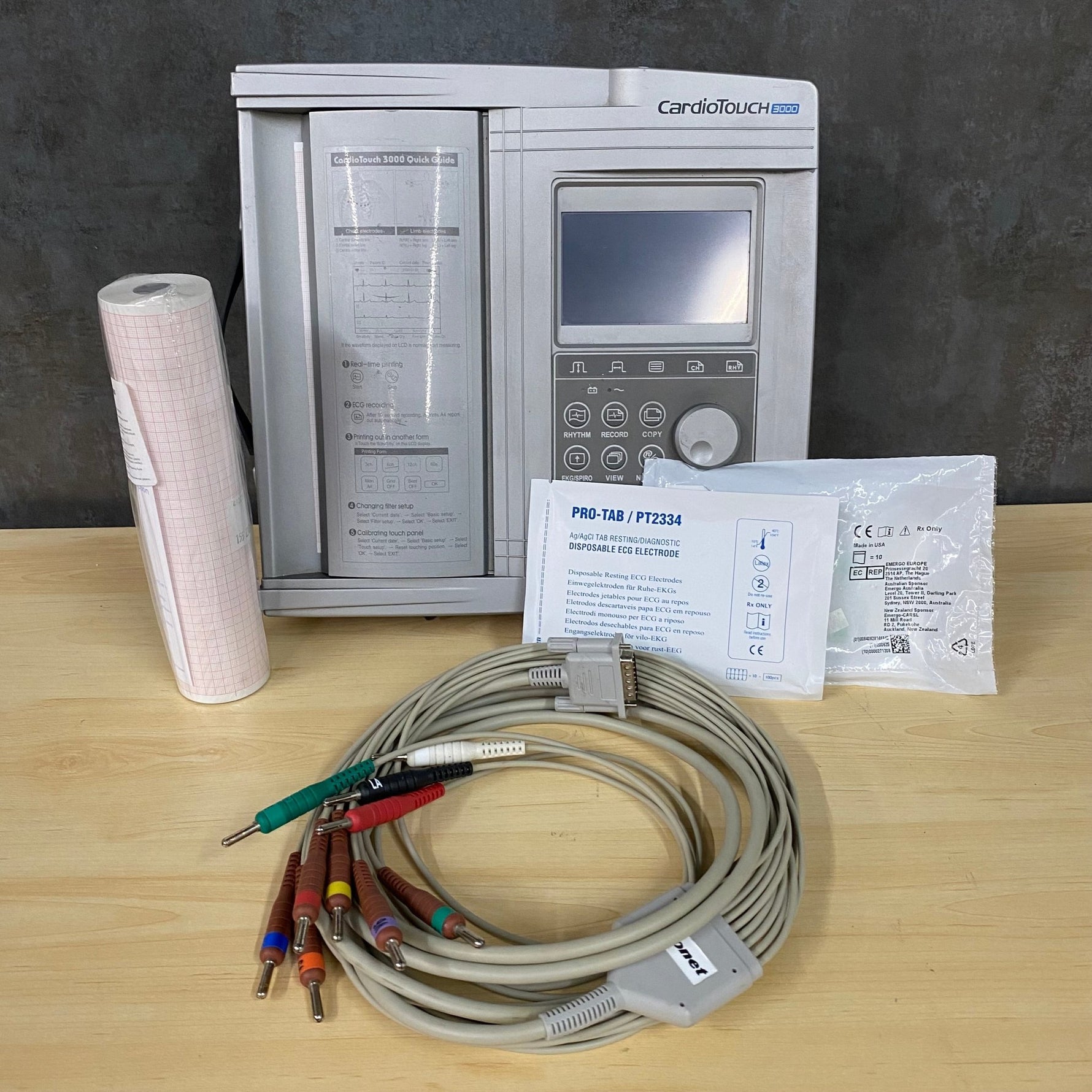

Materials Included
- CardioTouch3000 ECG Machine
- (1) 10-lead ECG Patient Cable
- (10) Alligator Clips
- (100) Electrodes
- (1) Paper Roll
- (1) Hospital Grade Power Cord
Technical Specifications
-
ECG Leads Simultaneous: 12 channel Resting ECG
-
Dimensions: 290 (W) × 300(D) × 97.5 (H) mm
-
Weight: Approx. 3.5 kg
-
Recording Channel: 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH Long Time (1min) and Beat Report
-
Sensitivity: 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5)mm/mV
-
Printing Speed: 5, 12.5, 25, 50, 100mm/sec
-
Sampling Rate
- Analysis Sampling Rate – 500 sample/sec
- Digital Sampling Rate - 8,000 sample/sec
-
Filters
- AC: (50/60Hz, -20dB or better),
- Muscle: (25~35Hz, -3dB or better),
- Base Line Drift: (off, 0.05, 0.1, 0.2Hz, -3dB or better),
- Low Pass Filter: (off, 40Hz, 100Hz, 150Hz)
-
Display:
- 272 x 480 Pixel Resolution, 4.3” Color TFT Wide Display
- 12 Channels Preview, ID, HR, Gain, Speed, Power Status
-
Export File Format: ECG,XML,PDF,JPEG,MFER
-
User Interface: Touch Screen, Rotary Push-knob
-
Recorder
- Thermal Print Head, Roll Paper
- Report Paper
- Width: A4/Letter – 215 mm (8.5”)
- Length: A4 – 297 mm (11.7”)
- Letter: 279 mm (11”)
- Resolution: 8 dot/mm (0.125 mm pitch)
-
Patient Data: ID, Name, Age, Gender, Height, Weight
-
Basic Measurement
- Heart Rate: 30~300bpm (±3bpm)
- PR, QRS, QT/QTc, P-R-T axis
-
ECG Data Storage: Internal Storage for 200 ECGs: Built- in Memory
-
Electrical
- Internal Noise: 20uV(p-p)max
- Input Impedance: More than 50MΩ
- Input Voltage Range: ±5mV
- CMRR: Greater than 105dB
- DC Offset Voltage: ≥ ±400mV
- Patient Leakage Current: < 10uA
- Frequency Response: 0.05~150 with in –3dB
- Isolated, Defibrillation and ESU Protected
-
Signal Quality Control
- Pacemaker Pulse Detection
- Lead Fault Detection, Signal Saturation Detection
-
Power Input: 100-240Vac, 1.5-0.75A, 50-60Hz, Output: 15Vdc, 4.2A
-
Battery Type: Replaceable and Rechargeable, Lithium ion, 11.1V, 2600mA
-
Battery Capacity
- 6 hours of normal use (without recording,200 ECGs) in 12CH
- Battery charge 3 hours
-
Safety Conformity: Class I, Type CF, Defibrillation-proof applied Part.
-
Communication: LAN, WIFI
-
Environment
- Operating Temperature: 5~40°C
- Operating Humidity: 10~90%RH
- Atmospheric Pressure: 70~106KPa
