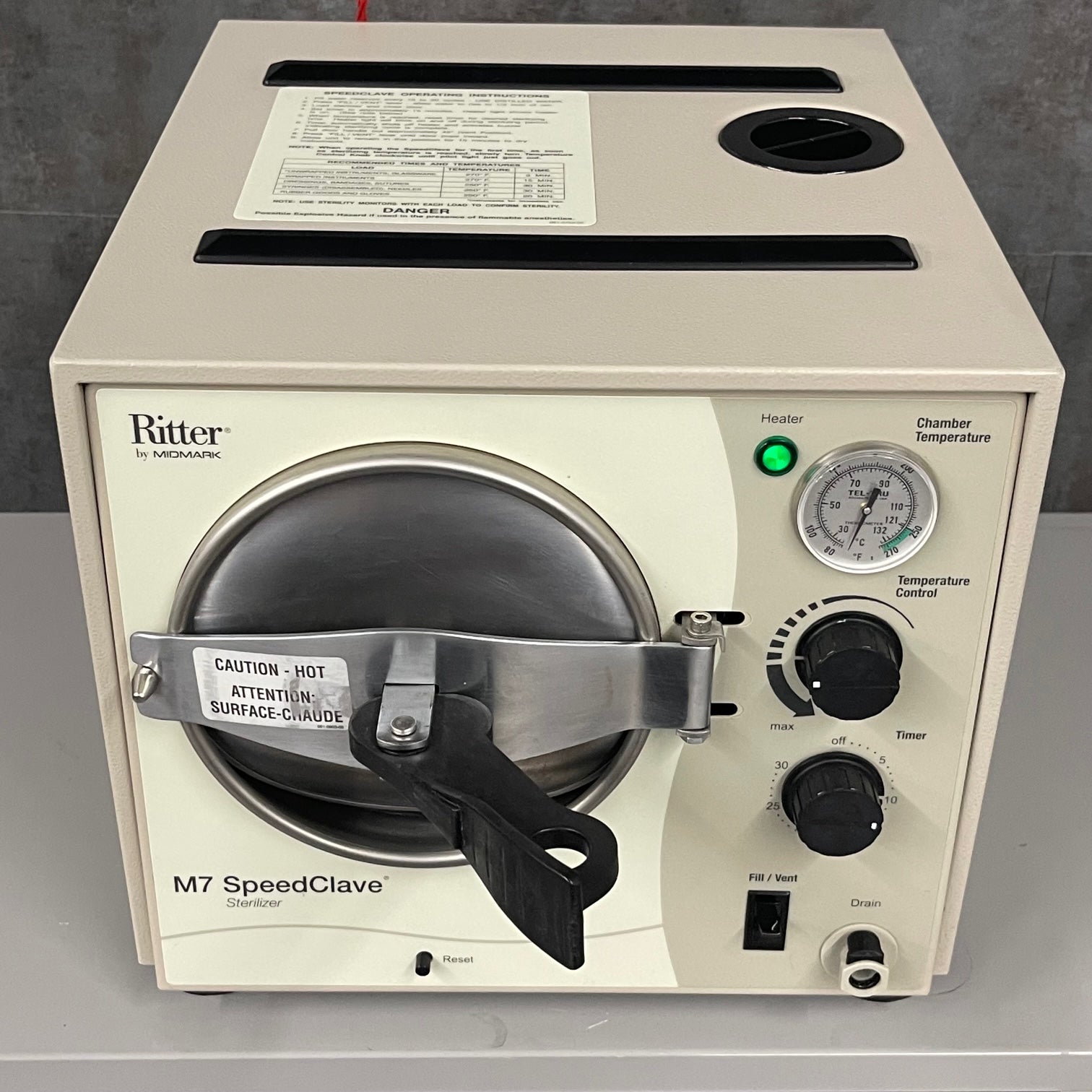

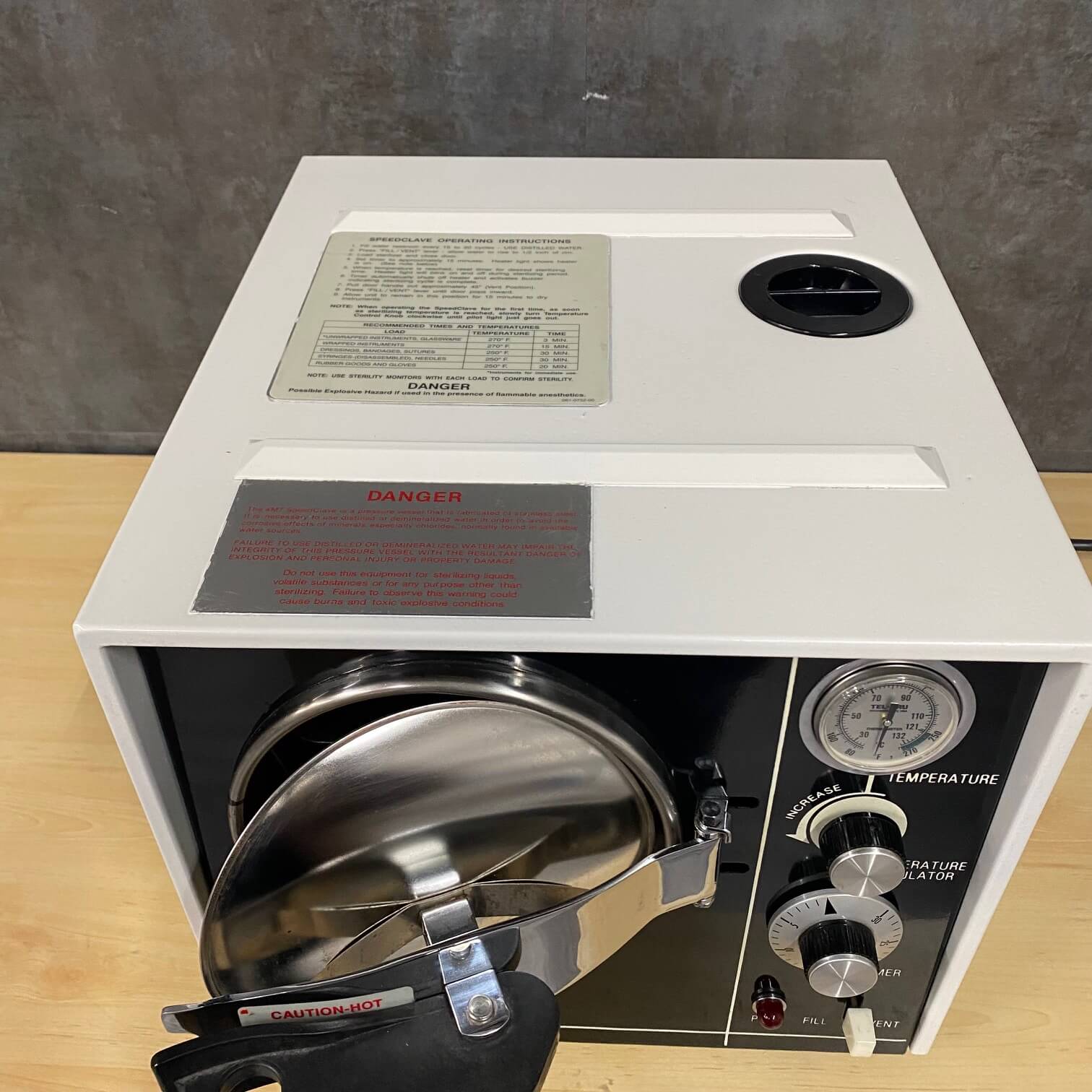

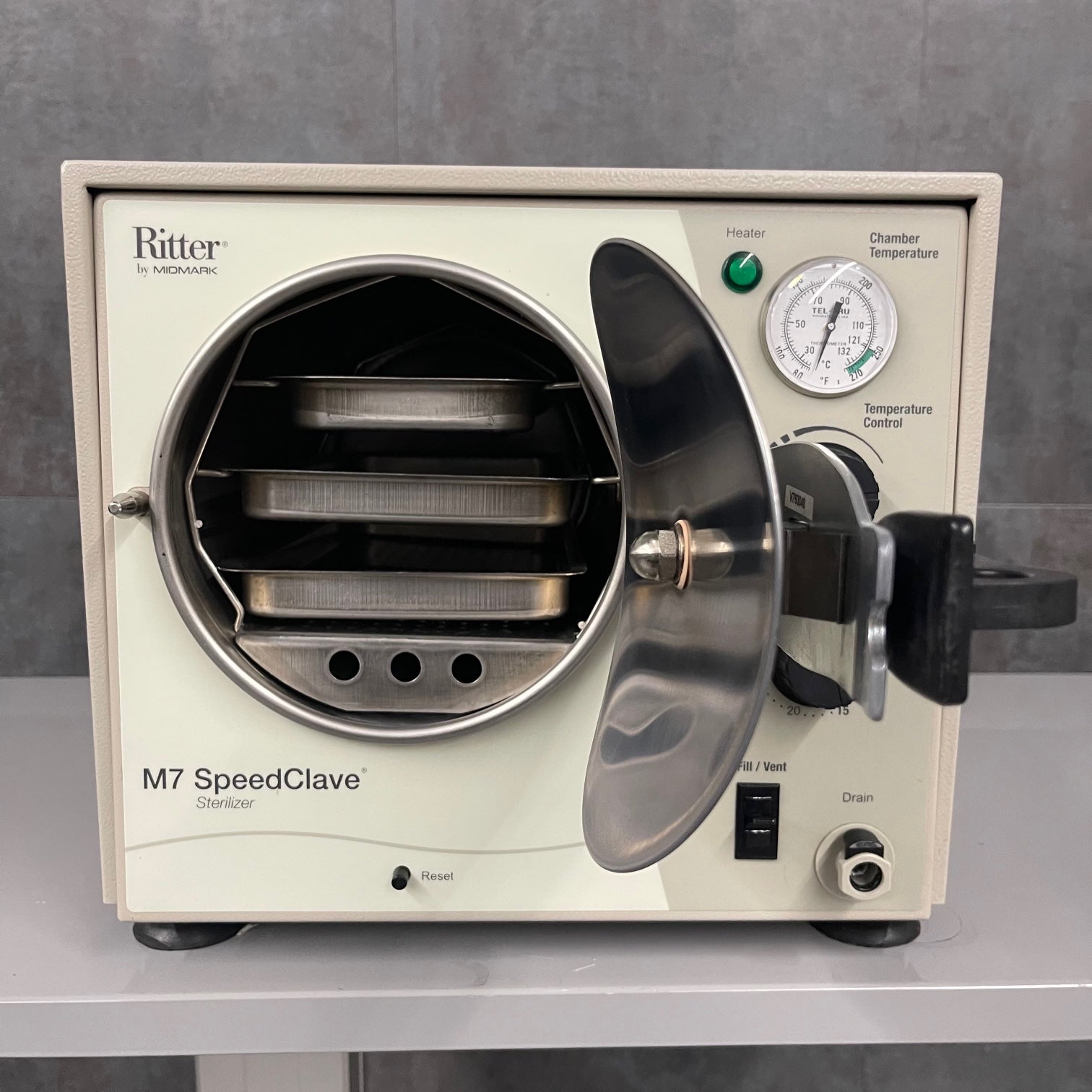

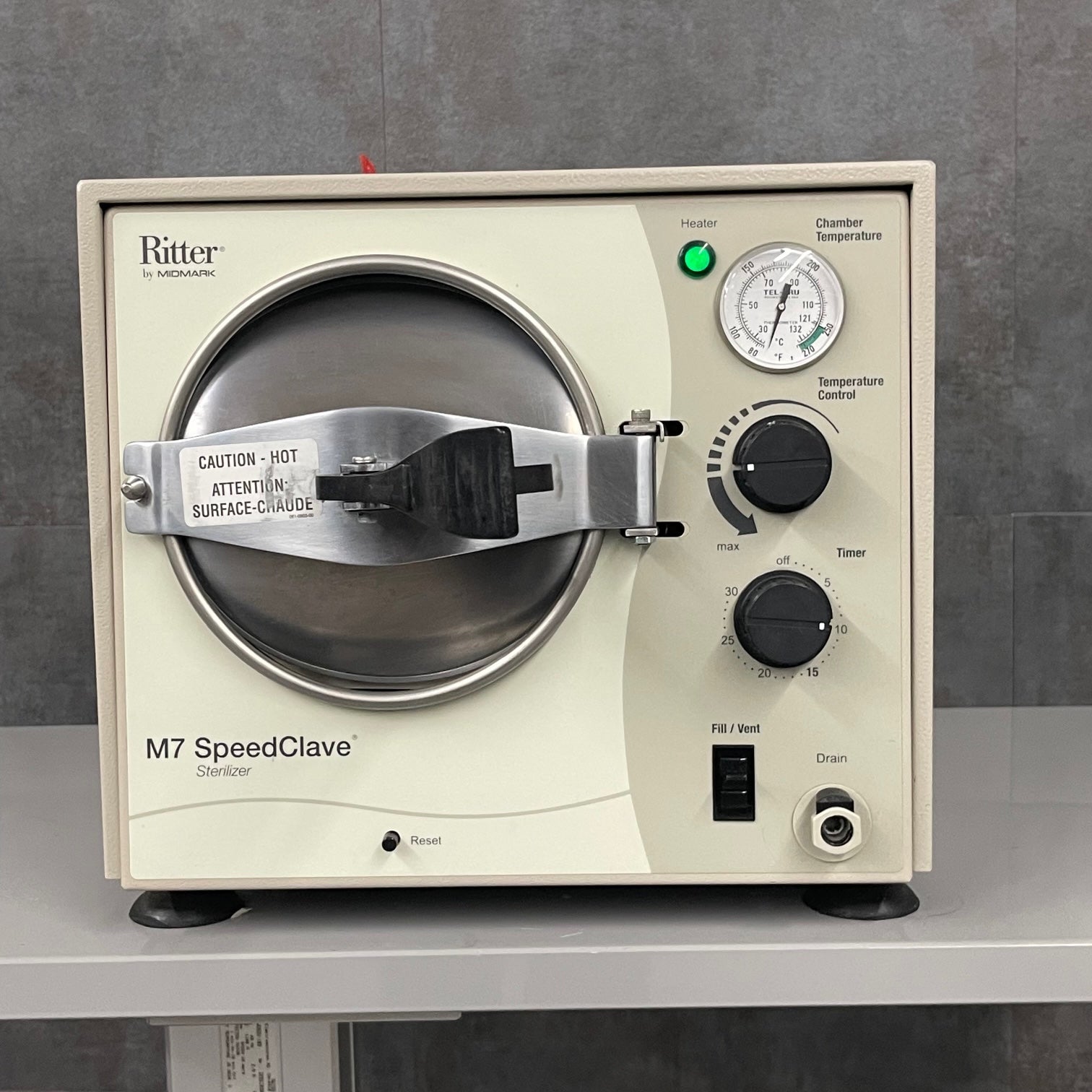

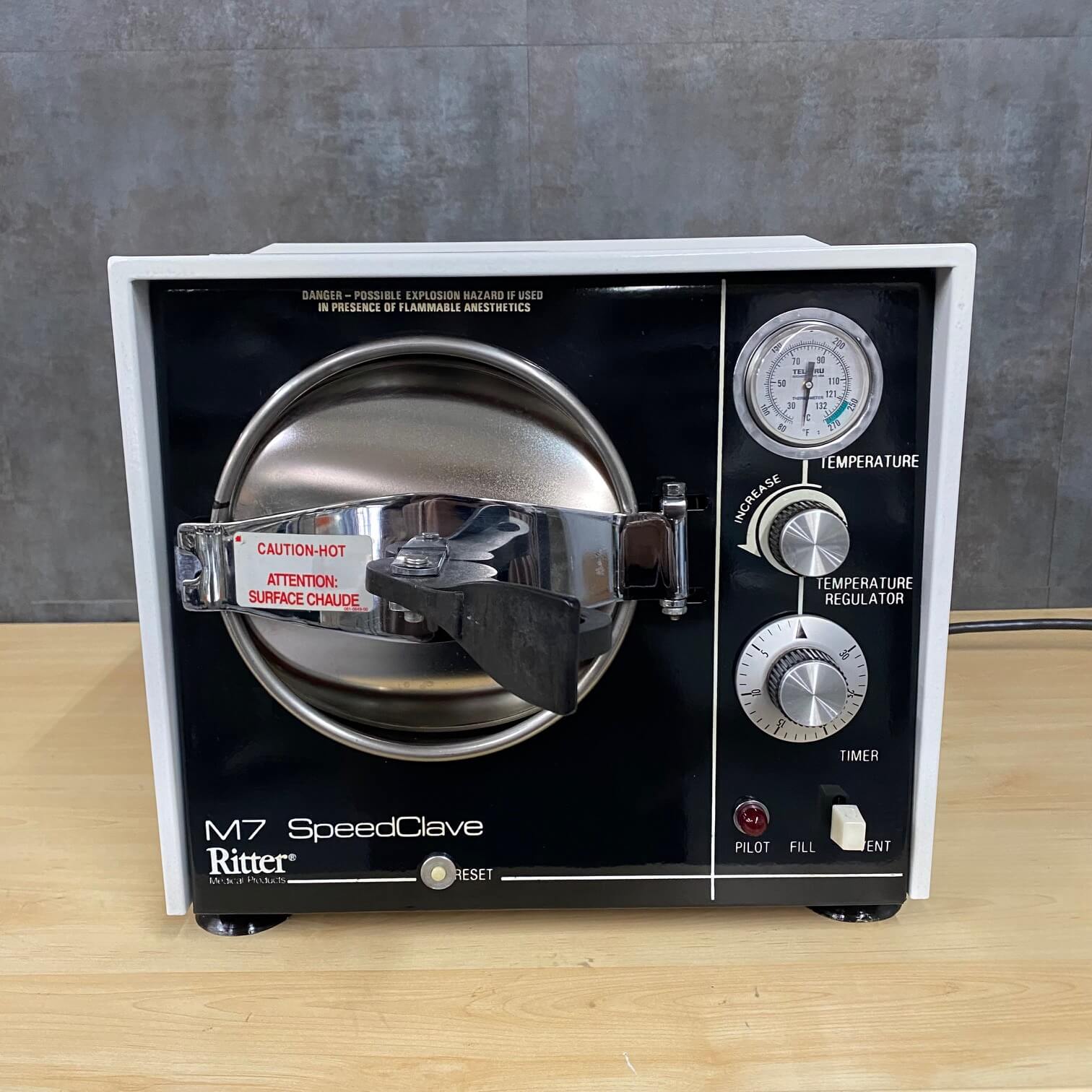

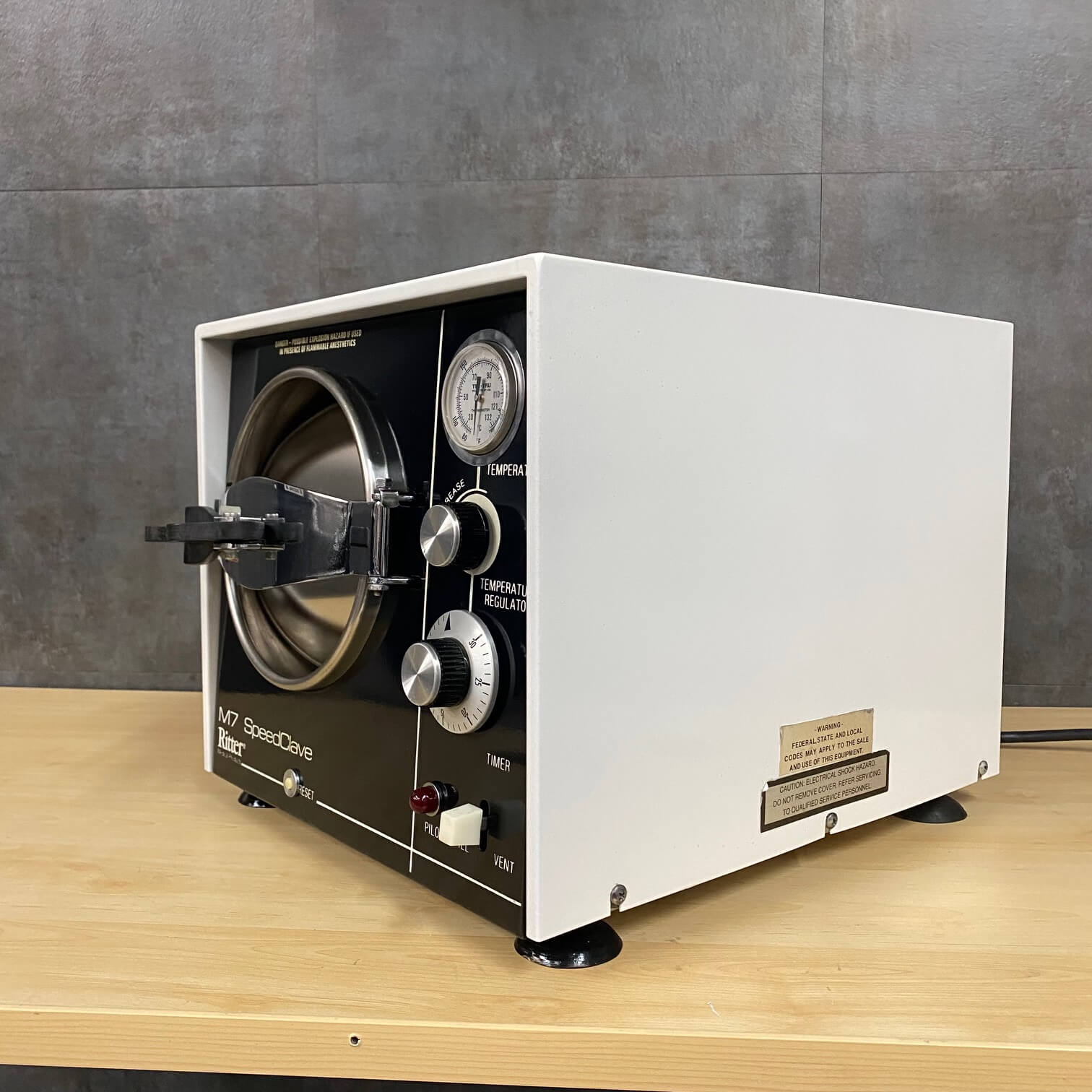

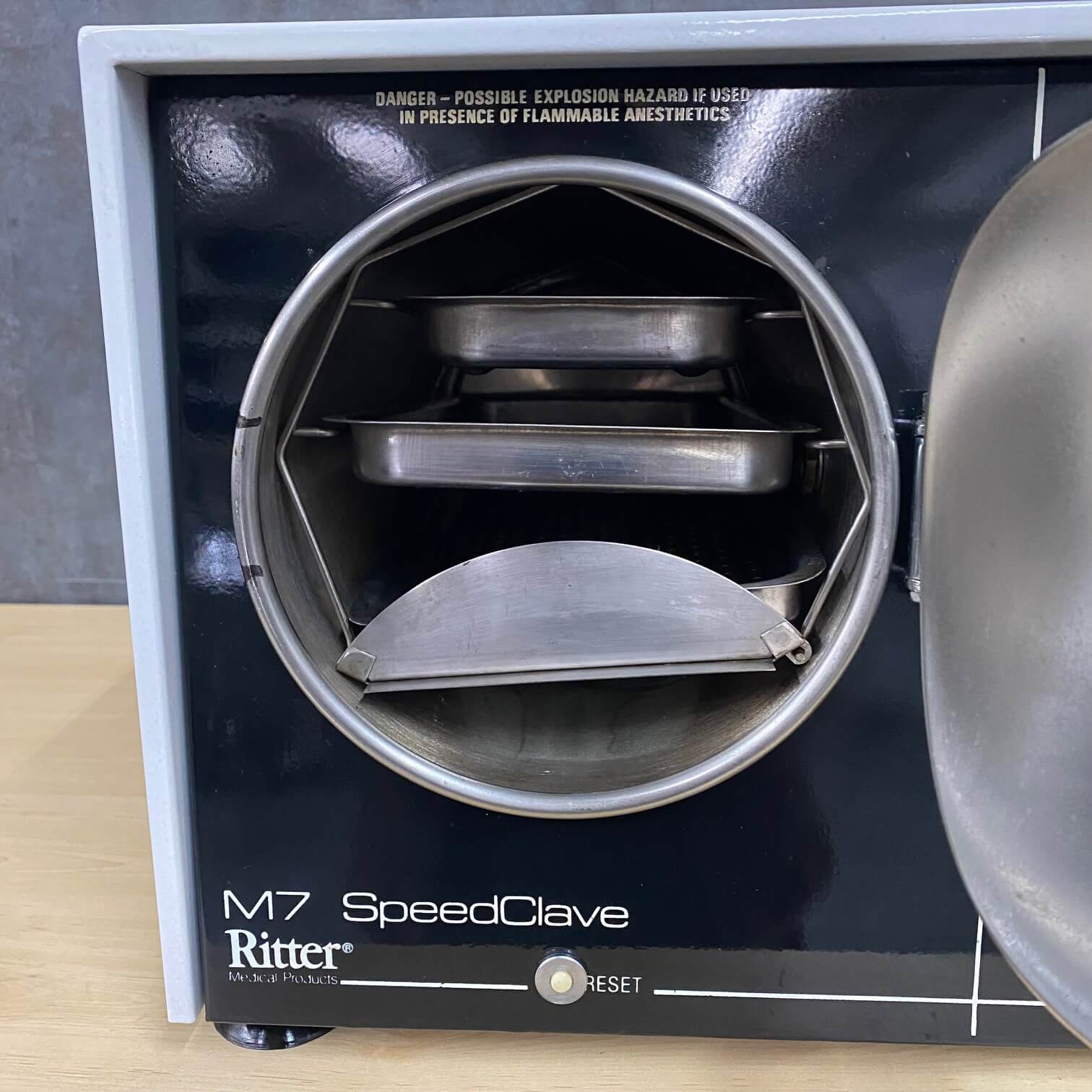

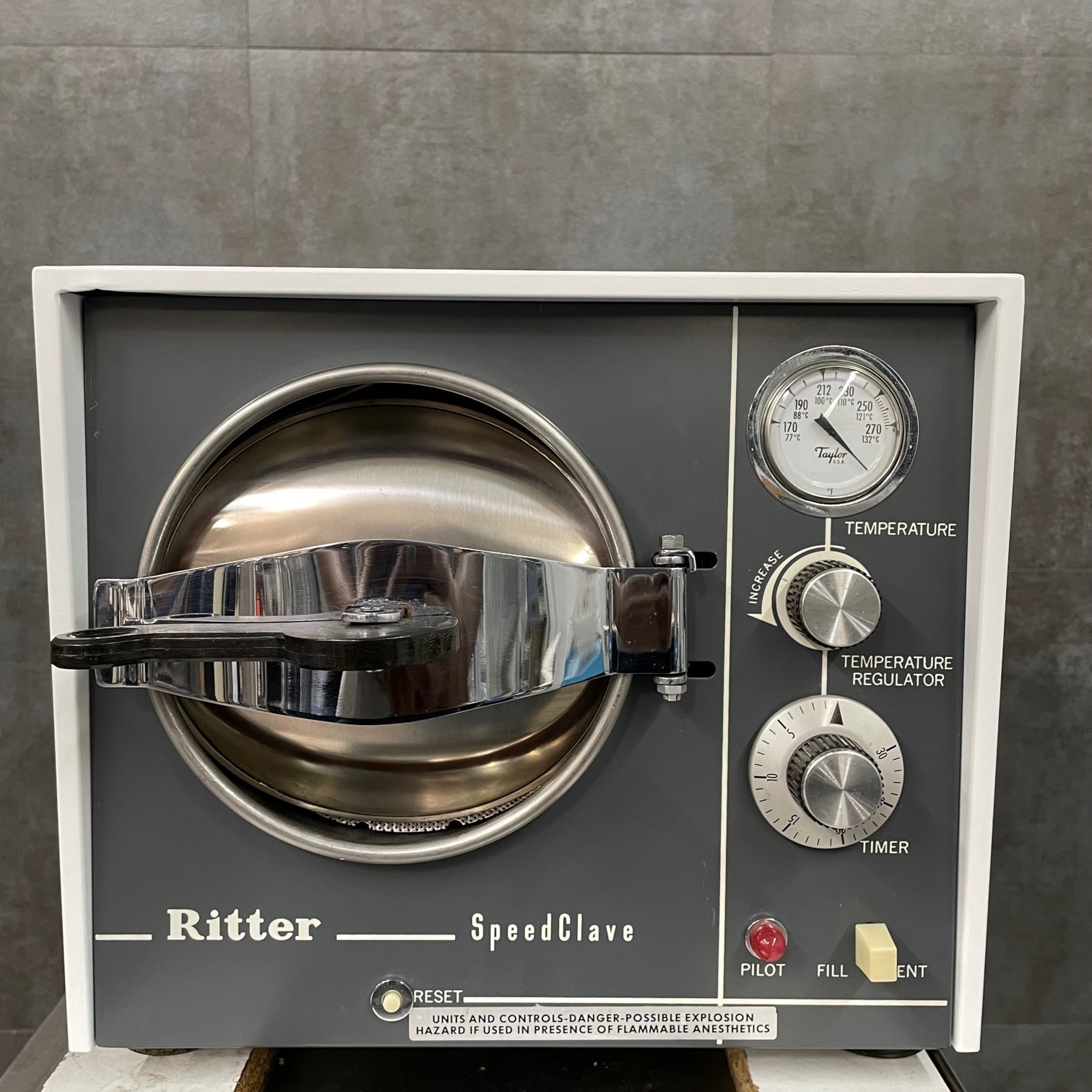

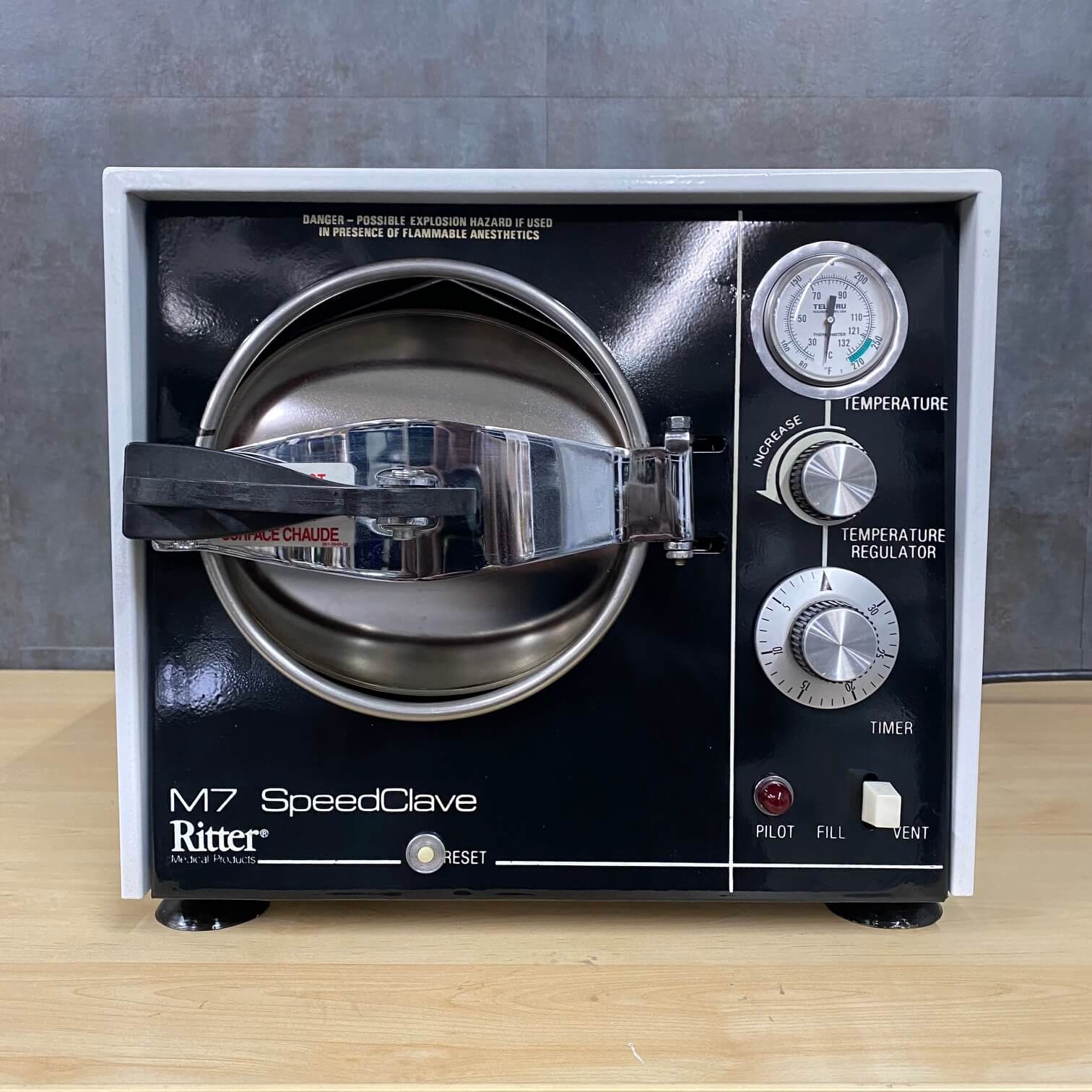

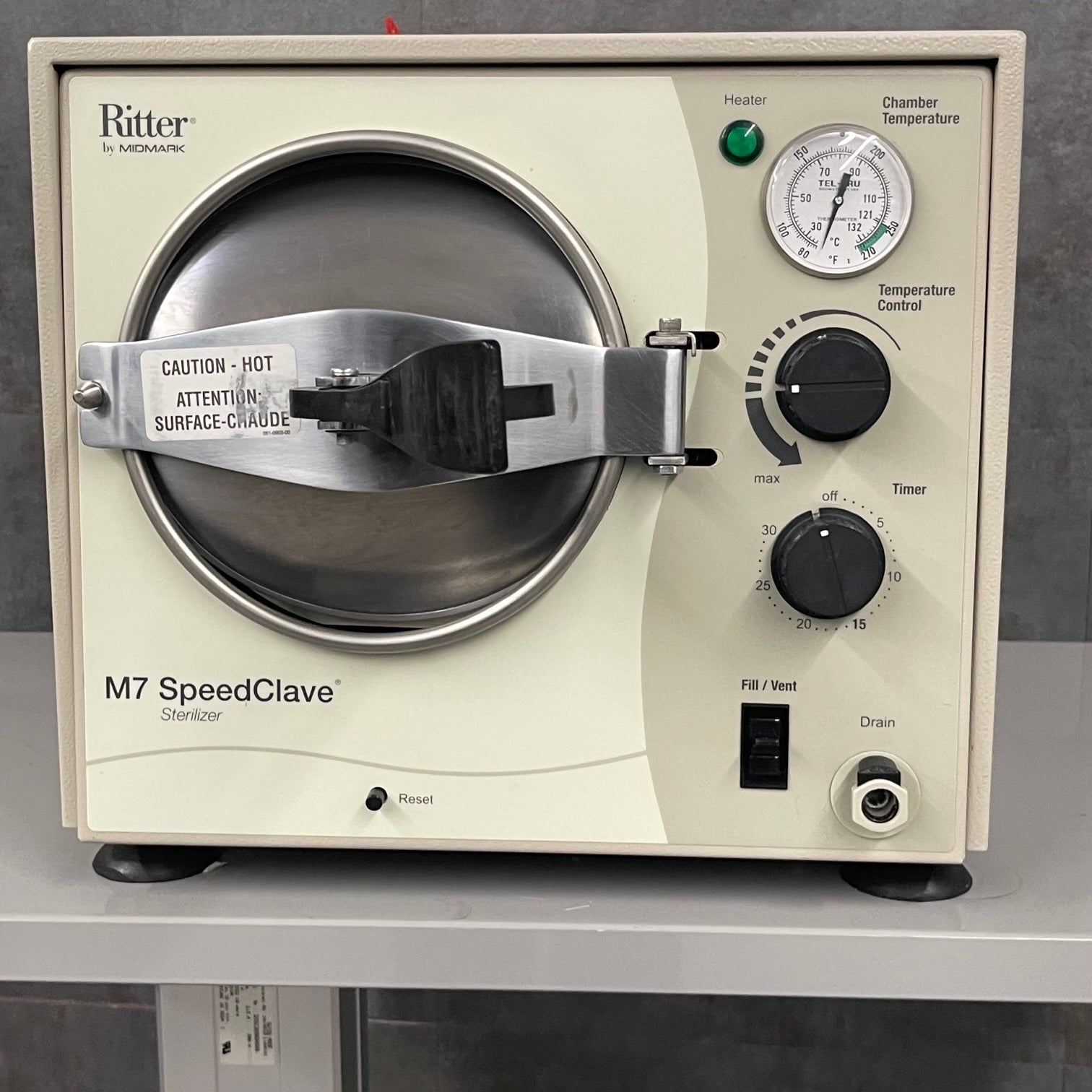

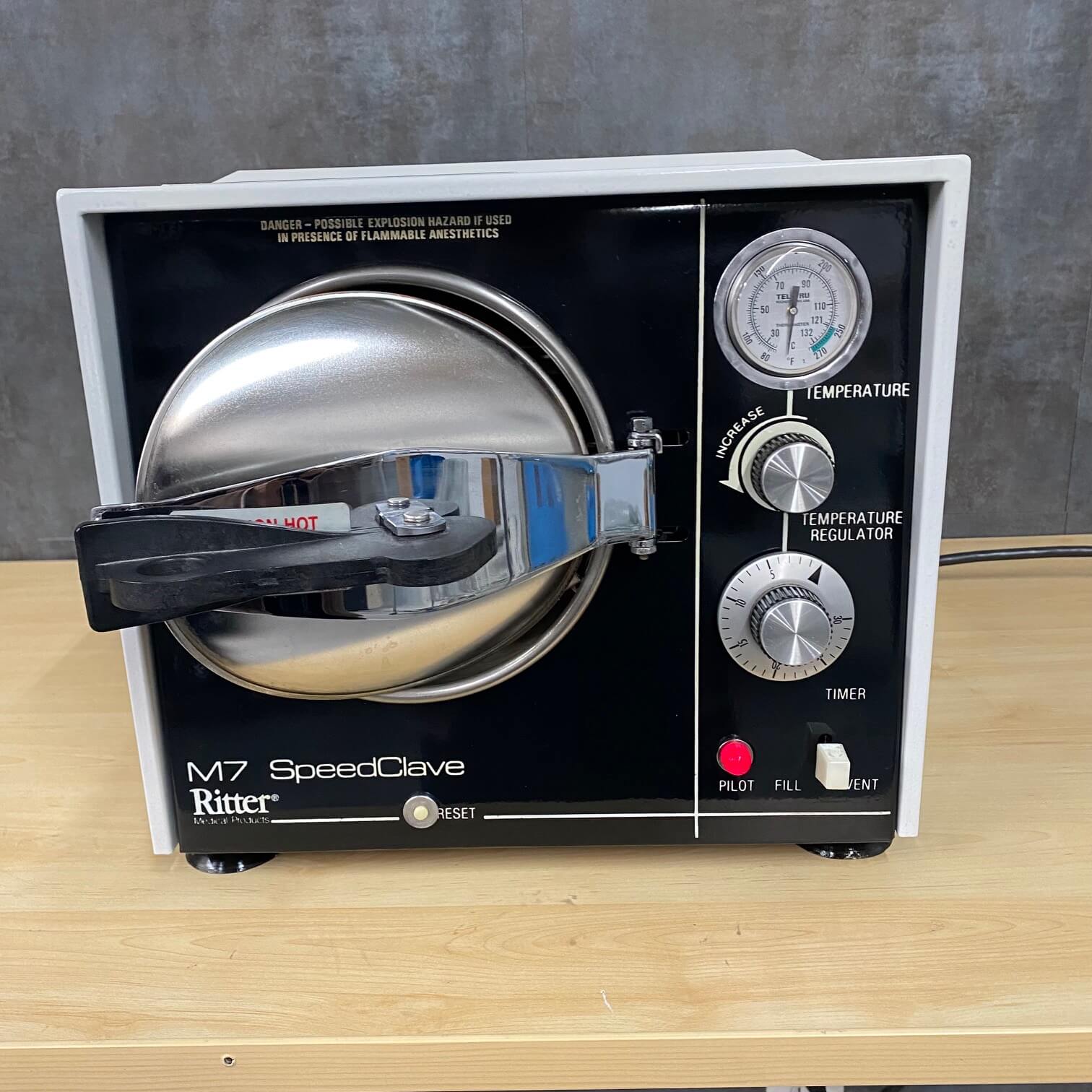

Midmark Ritter M7 speed Clave sterilizer

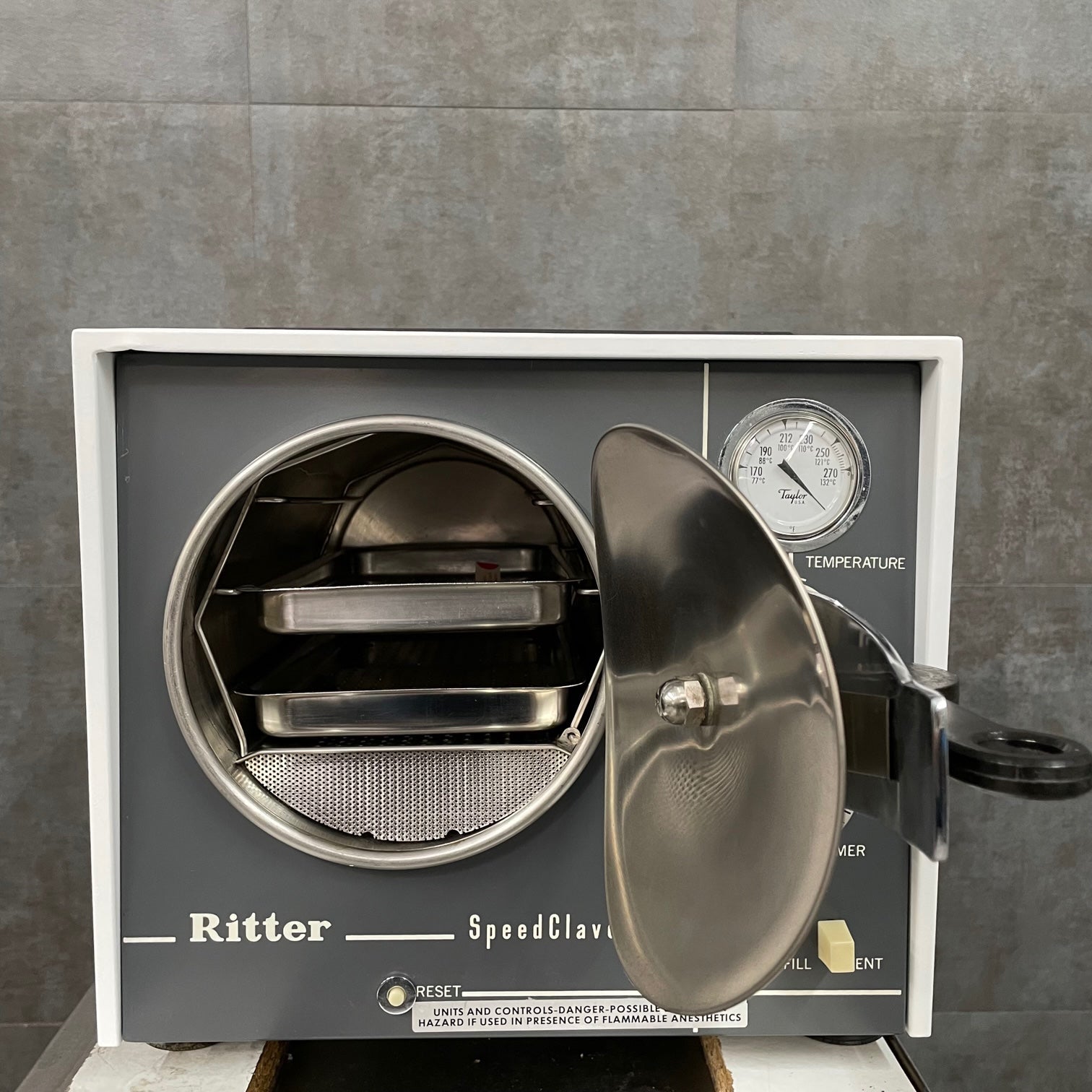

The M7 autoclave has a safety door, which automatically seals when pressurized and will not allow the operator to open
the door until the chamber is safely depressurized.
The temperature regulator allows the operator to preset the temperature at a desired setting between 250° F (121°C) and 270°F (132°C).
This control, acting as a thermostat, cycles the heating element on and off.
The temperature gauge indicates the temperature inside the chamber. The gauge is graduated in 2-degree increments.
The unit comes with a low-water cut-out switch, which prevents “dry burning”.
The M7 will only operate when there is enough water present, which prolongs the life of the heating element.
A pilot light is on when the heater is on,
and cycles on and off during normal operation. A cycle timer regulates sterilization time from 0 to 30 minutes and automatically turns the M7 offwhen the sterilization cycle is complete.
This prevents over-sterilization thus extending the service life of your instruments.
