Welch Allyn CP 200 ECG – Refurbished | Angelus Medical Los Angeles
Welch Allyn CP 200 ECG – Refurbished | Los Angeles, California

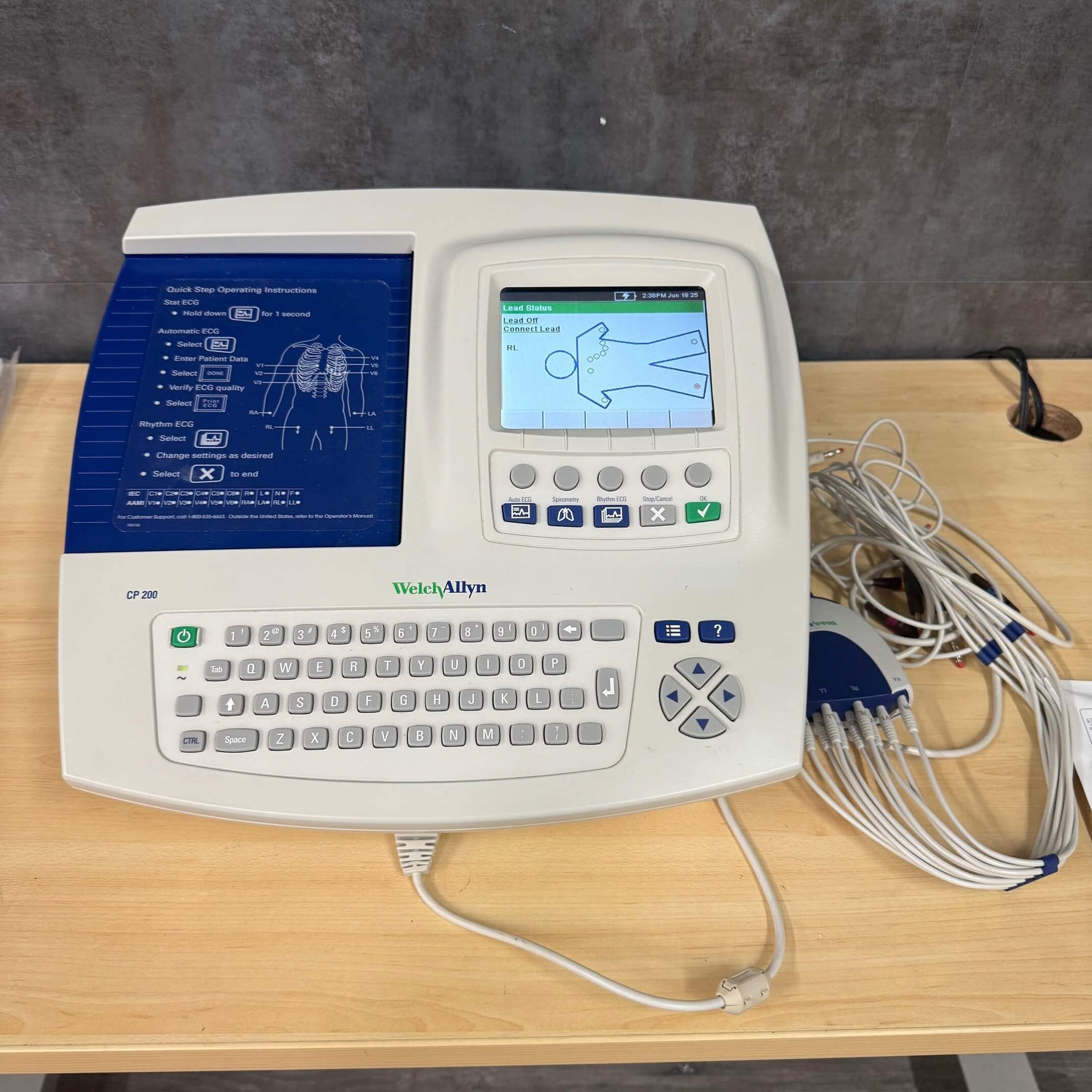

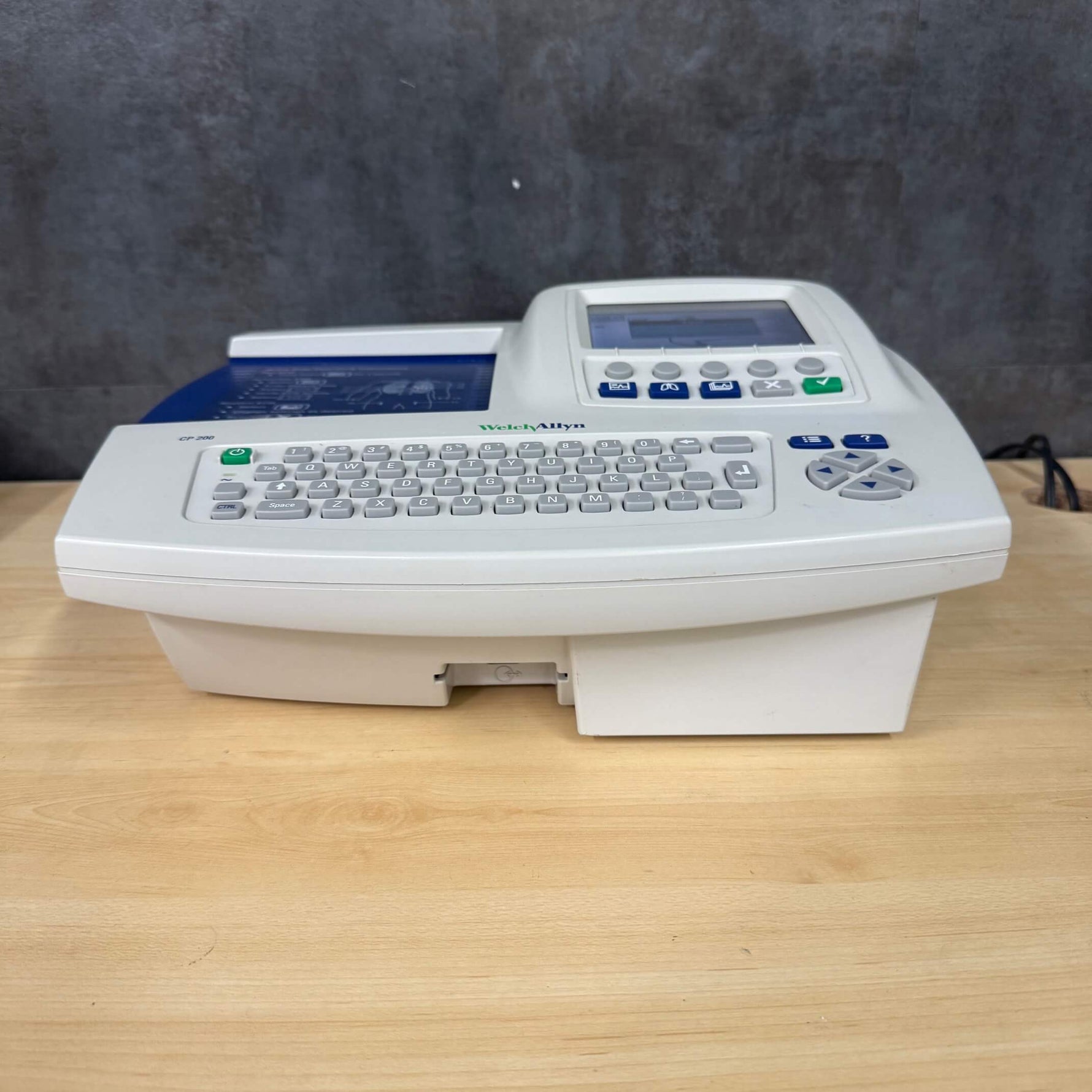

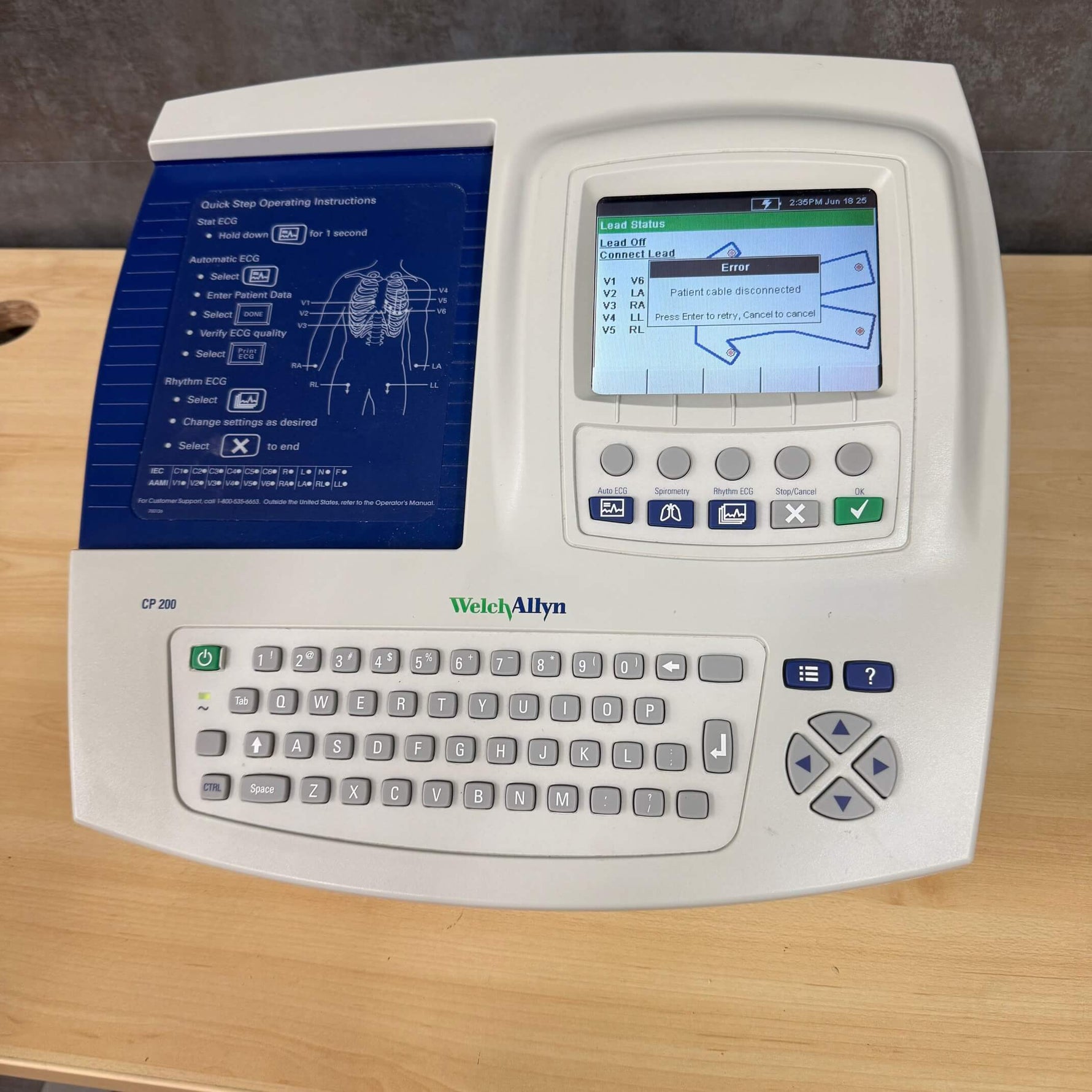

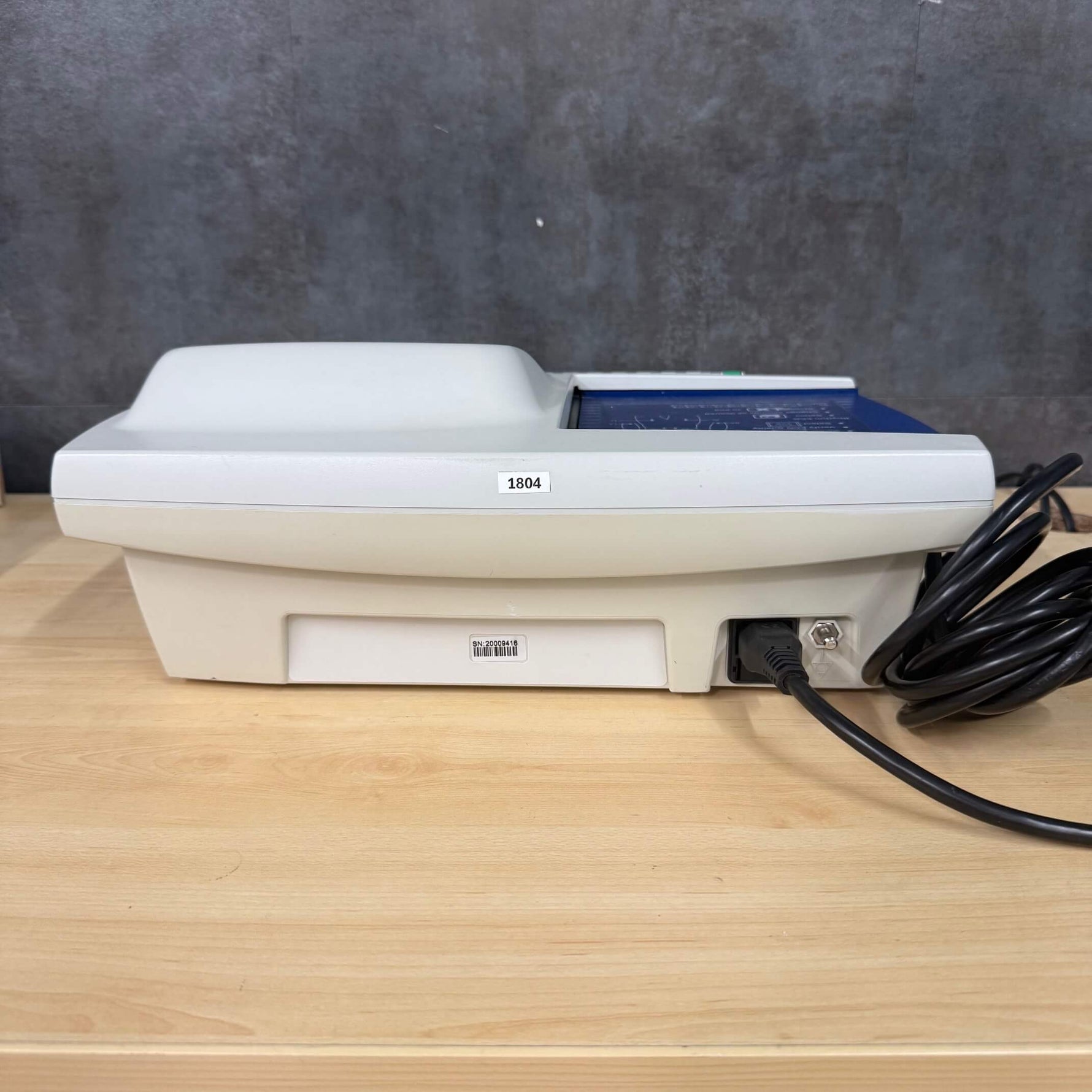

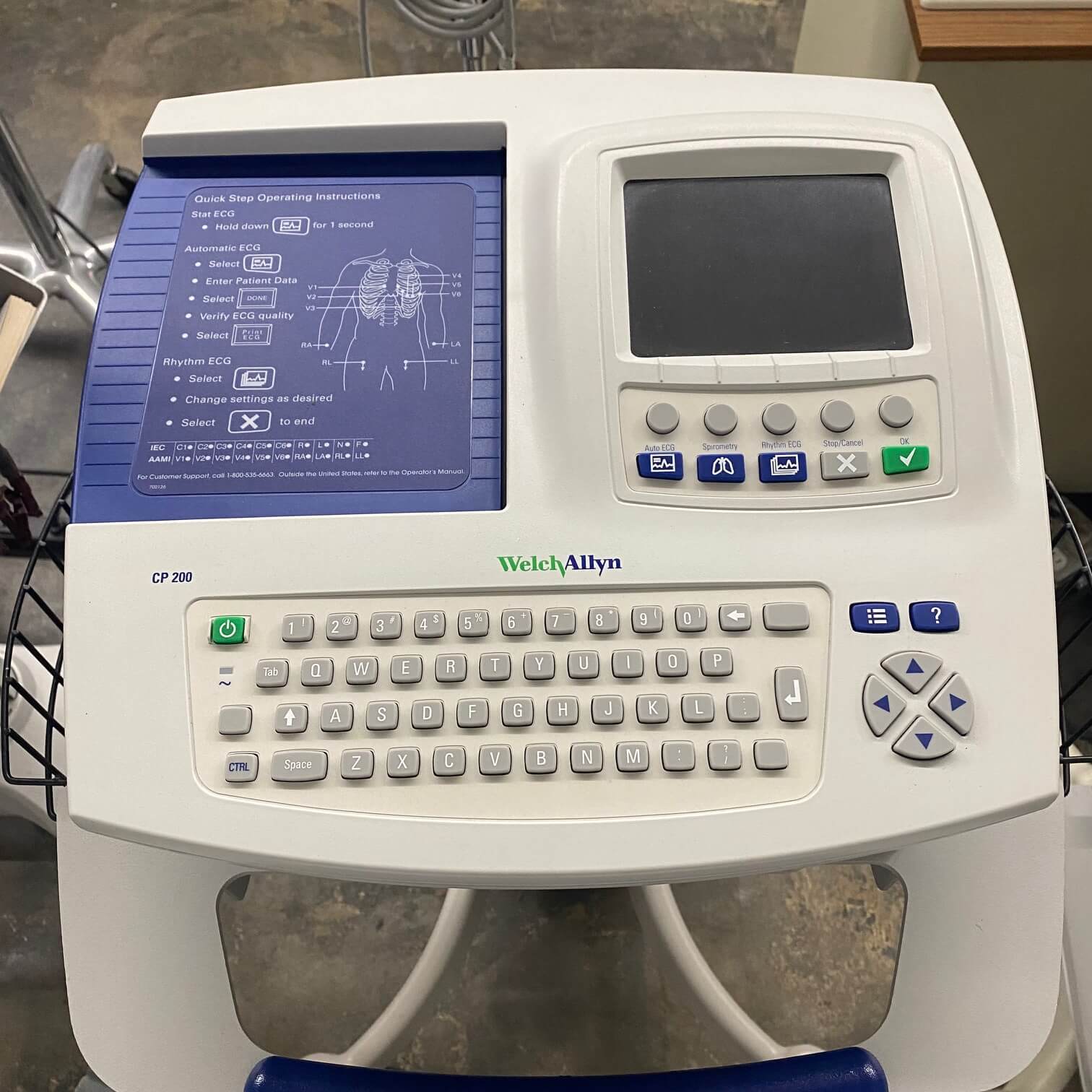

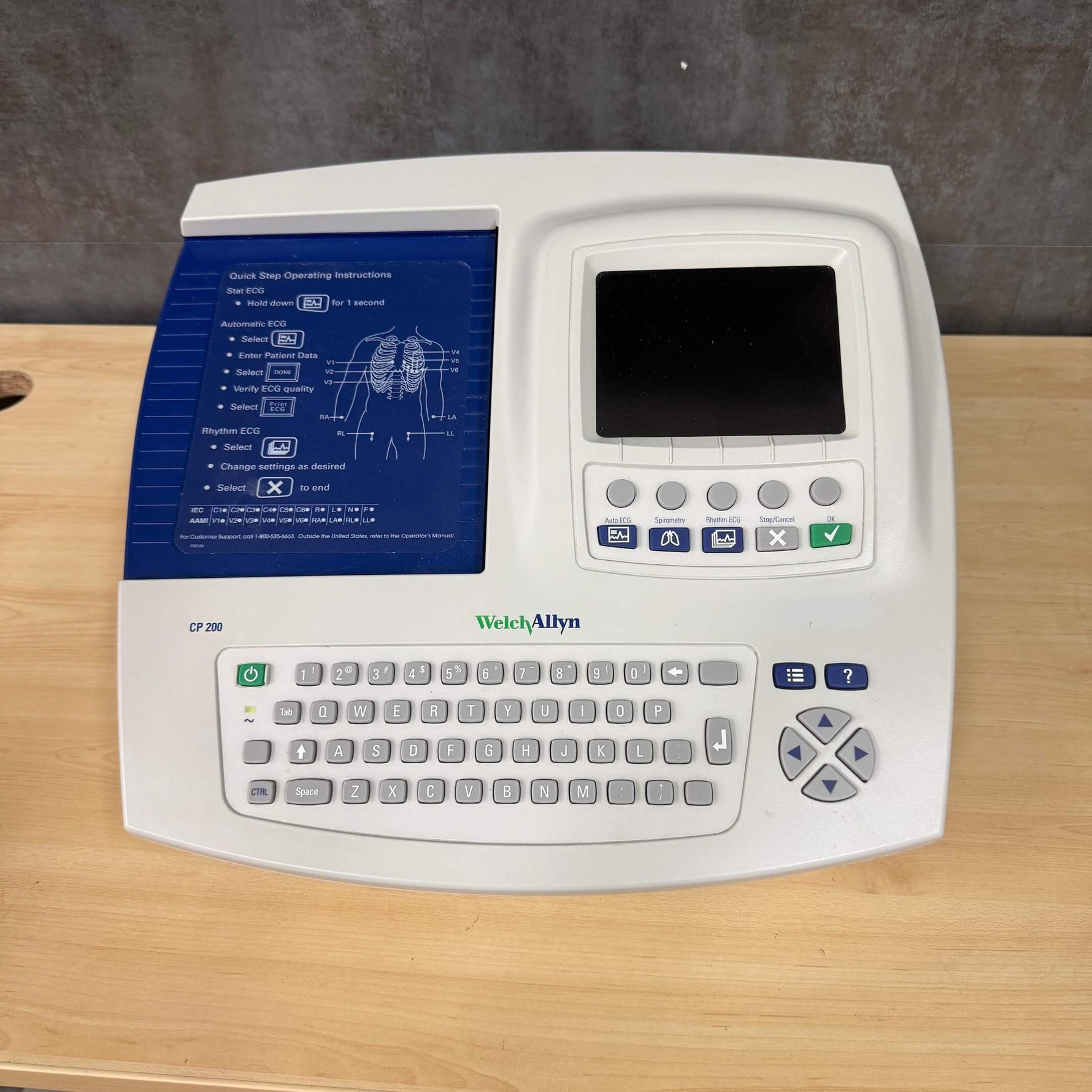

Looking for a high-performance ECG machine near you? The Welch Allyn CP 200 ECG – Refurbished from Angelus Medical & Optical is the ideal solution for clinics and physicians in Los Angeles, California, and across the U.S. This advanced electrocardiograph offers 12-lead ECG capability, interpretive analysis, and data connectivity, all in a compact, user-friendly design.
Key Features
-
12-Lead ECG Capability for comprehensive cardiac diagnostics.
-
Interpretive Analysis for faster clinical decisions.
-
Color Display for clear waveform visualization.
-
Integrated Printer for immediate ECG reports.
-
Connectivity Options: USB and EMR integration for data management.
-
Compact & Portable Design for easy mobility in clinical settings.
Specifications
-
Model: Welch Allyn CP 200 ECG
-
Leads: 12-lead ECG
-
Display: High-resolution color LCD
-
Printer: Integrated thermal printer
-
Connectivity: USB, EMR-ready
-
Warranty:
- Refurbished: 90 days parts & labor
Benefits for Clinics & Physicians
-
Cost Savings: Premium ECG technology at a fraction of new price.
-
Accuracy & Reliability: Trusted Welch Allyn performance.
-
Compliance: Annual calibration and certification available.
-
Local Availability: Available near Los Angeles, California with nationwide shipping.
Ideal for:
- Primary Care Clinics
- Cardiology Practices
- Hospitals & Outpatient Centers
- Urgent Care Facilities
Related Collections:
Frequently Asked Questions (FAQs)
Q1: What is the Welch Allyn CP 200 ECG used for?
A: It’s designed for 12-lead electrocardiogram testing with interpretive analysis.
Q2: Is this unit refurbished?
A: Yes, professionally refurbished and tested for quality.
Q3: What is the warranty on refurbished units?
A: 90 days parts and labor.
Q4: Do you offer certified used units?
A: Yes, with 15–30 days warranty.
Q5: Can I buy this near Los Angeles, California?
A: Yes, Angelus Medical serves clinics locally and ships nationwide.
Q6: Does it include a printer?
A: Yes, an integrated thermal printer for fast ECG reports.
Q7: Is it portable?
A: Yes, lightweight and easy to move between rooms.
Q8: Do you offer calibration and certification?
A: Yes, annual calibration services are available.
Q9: Does it support EMR integration?
A: Yes, via USB connectivity.
Q10: What payment options are available?
A: Multiple payment methods and financing options.
Q11: Do you sell new units?
A: Yes, with manufacturer warranty.
Q12: How do I order?
A: Call us or order online through Angelus Medical’s website.
Q13: Can I use this for pediatric patients?
A: Yes, with appropriate lead placement.
Q14: Is training provided?
A: We offer guidance and support for setup and use.
Q15: Do you provide shipping outside California?
A: Yes, we ship nationwide.
Welch Allyn CP-series ECG machines (models CP 100 & CP 200)
Welch Allyn’s CP-series ECG devices are 12-lead resting electrocardiographs designed for small-practice clinics, physicians’ offices and urgent-care centres. Both models give full-page (8.25 × 11 in) printouts on Z-fold thermal paper and use advanced signal processing and filters to deliver accurate ECG measurements. The CP 100 is the entry-level model; the CP 200 builds on the CP 100 with a larger colour display, memory for storing ECGs and optional spirometry.
Key features and benefits
| Model |
Key features & benefits |
Unique selling points |
| CP 100 |
12-lead resting ECG with optional MEANS interpretation, a high-resolution thermal printer for full-size reports, a lead-quality indicator to spot poor connections, and an alphanumeric keyboard with a monochrome LCD for quick data entry.
|
Cost-effective entry model using the same ECG engine as CP 200; ideal when color preview or internal storage isn’t required.
|
| CP 200 |

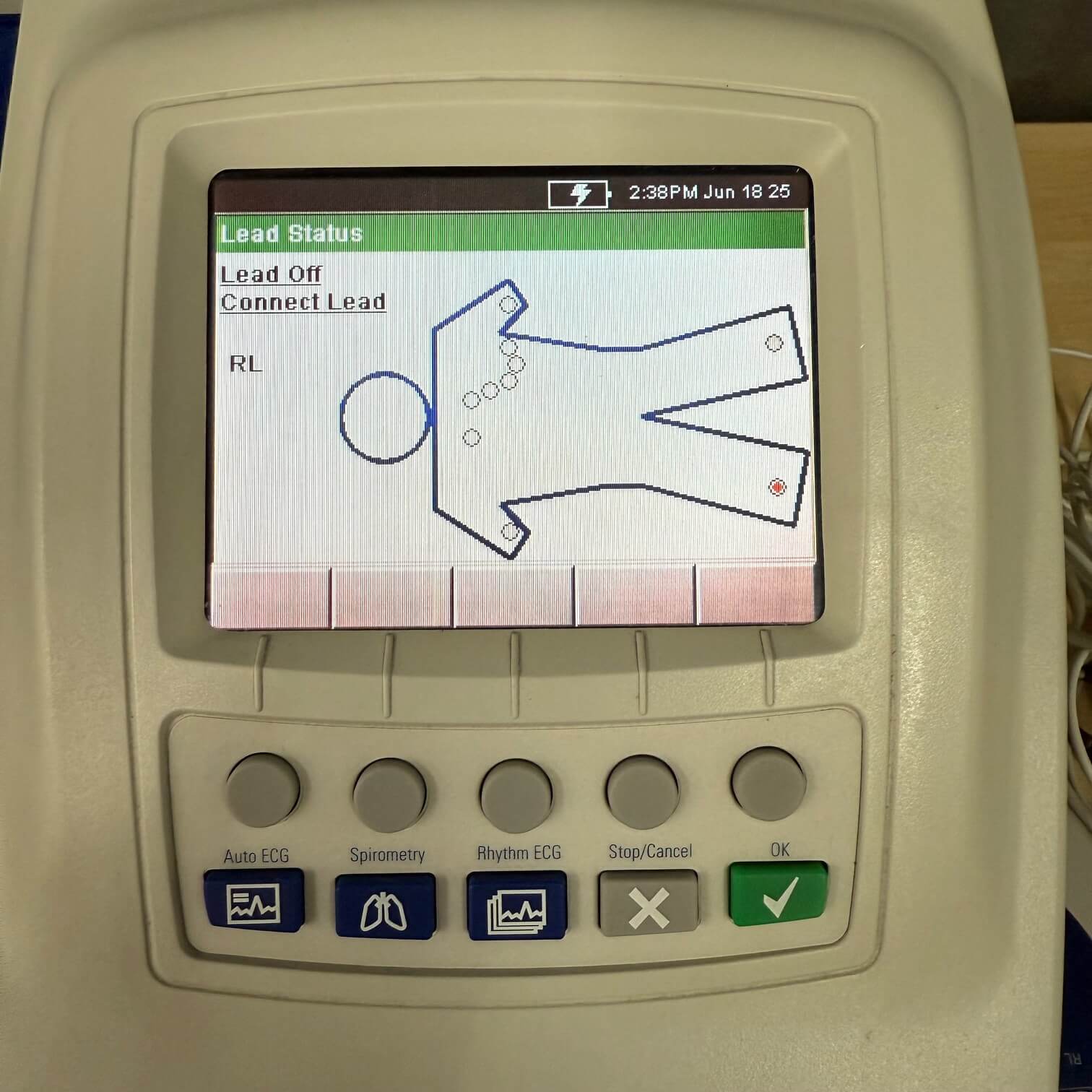

All CP 100 capabilities plus a color LCD waveform preview, advanced filters for clean traces, customizable report formats with hot keys, instant-on battery operation, storage for up to 50 ECGs, Schedule-Test mode with admin controls, EMR-ready connectivity (CardioPerfect), and optional spirometry.
|
Color preview, onboard storage, and EMR connectivity streamline workflow; optional spirometry turns it into a 2-in-1 cardiopulmonary device.
|
Technical specifications
| Specification |
CP 100 |
CP 200 |
| Dimensions |
Not specified in Dr’s Toy Store listing; both models share the same chassis. |
16.2 in (W) × 15.6 in (D) × 6.2 in (H). |
| Weight |
11.6 lb (5.3 kg) including battery. |
11.6 lb (5.3 kg) including battery. |
| Display |
Monochrome LCD for text only; does not show waveforms. |
Colour LCD shows ECG waveform and text. |

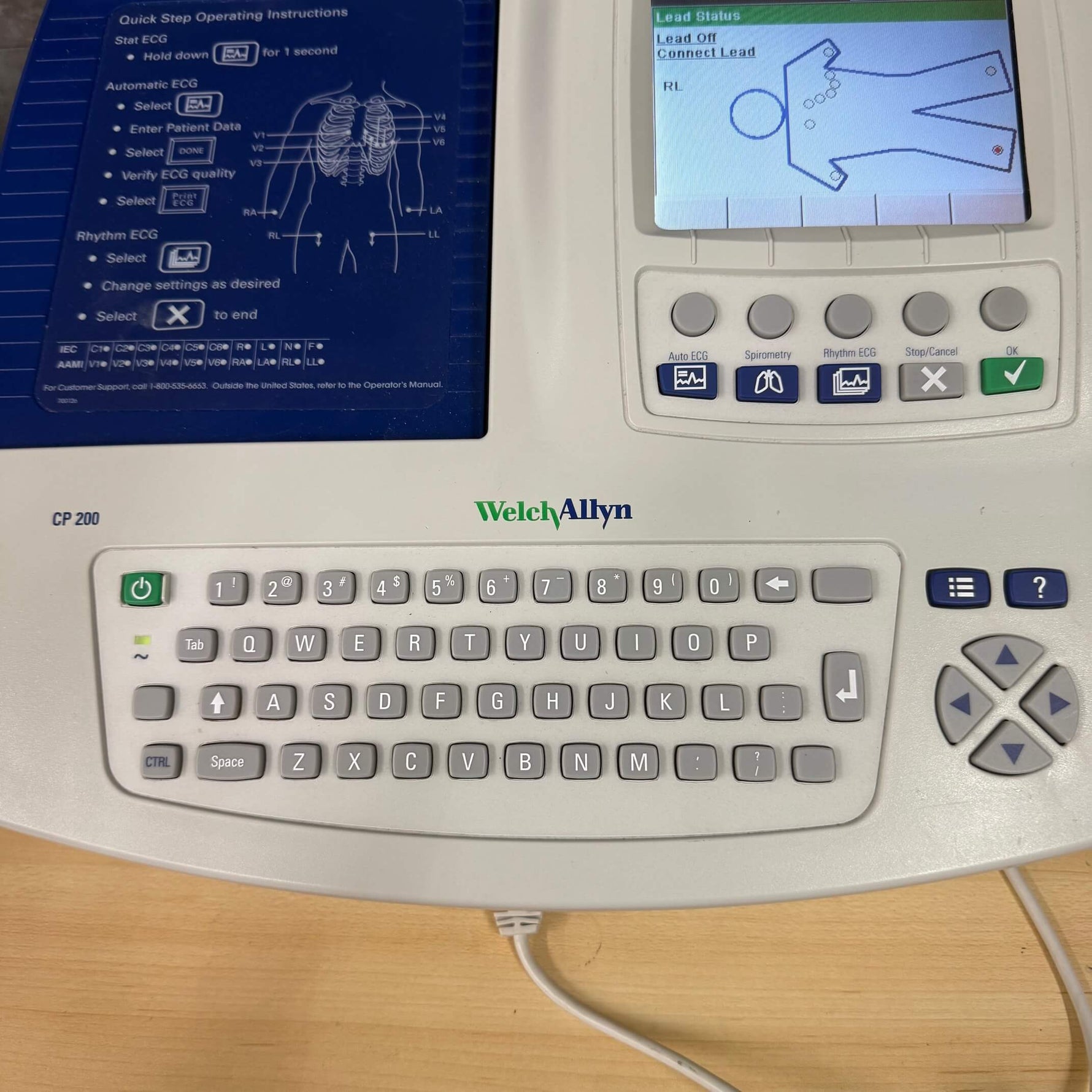

| Keyboard |
Elastomer keypad with full alphanumeric keys. |
Same full alphanumeric keyboard plus dedicated function hot keys for common actions. |
| ECG storage |
No internal storage (reports printed immediately); CP 200 only stores up to 50 ECGs. |
Up to 50 ECGs and tests stored in memory. |

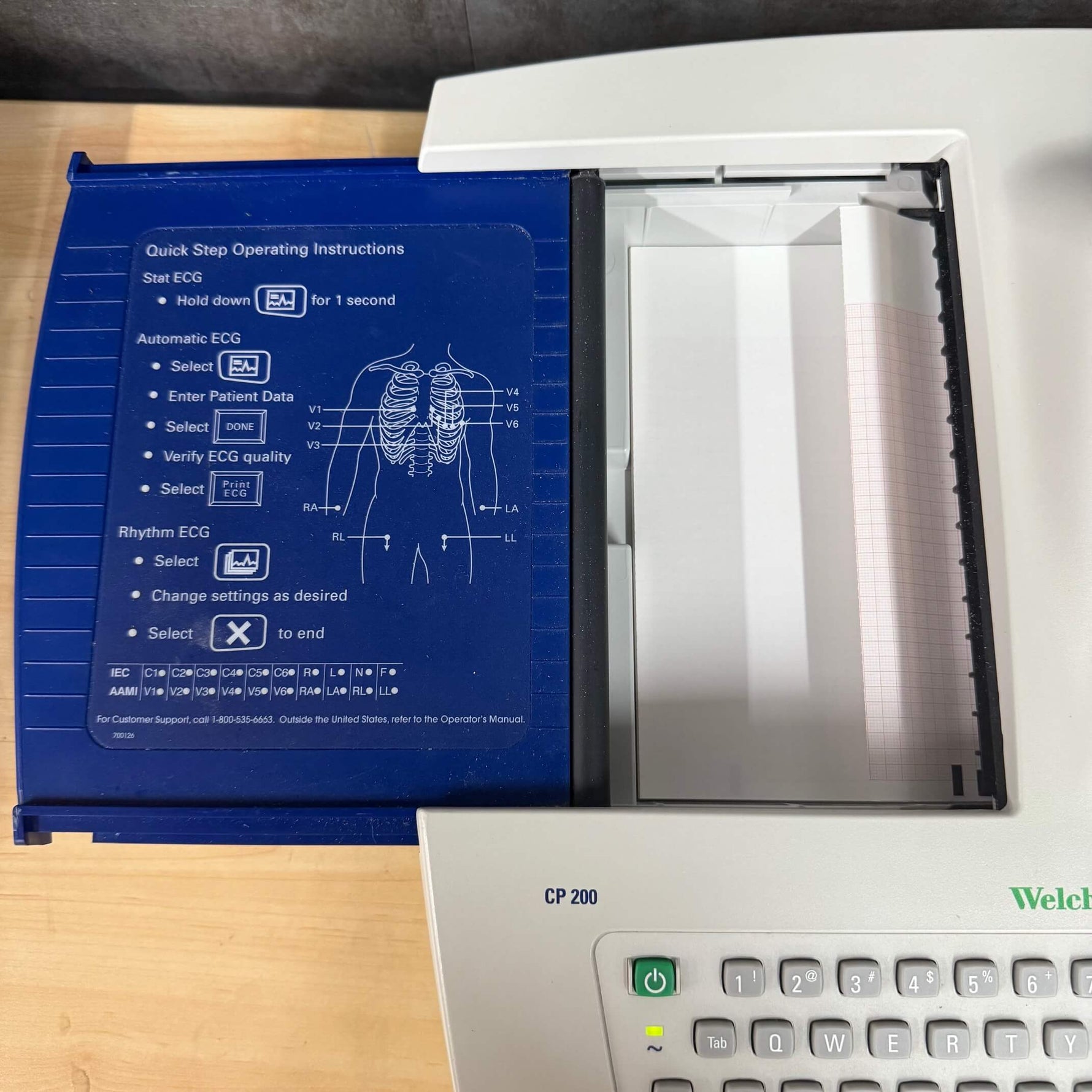

| Paper type / printer |
8.25 × 11 in (21 × 28 cm) Z-fold thermal paper (200 sheets); internal computer-controlled dot-array printer with 8 dots/mm resolution. |
Same paper and internal thermal printer; CP 200 also supports external USB printers that use the PCL language. |
| Paper speeds |
10, 25 or 50 mm/s. |
Same 10, 25 or 50 mm/s speeds. |
| Gain settings |
Auto ECG: 5, 10, 20 mm/mV or automatic; Rhythm ECG: 5, 10, 20 mm/mV. |
Same gain settings for both auto and rhythm ECGs. |
| Report formats |
Auto ECGs: 3×4, 3×4+1R, 3×4+3R, 6×2, 12×1, 6×2 50 mm/s and 6×2 extended; Rhythm ECG: 3 leads at a time. |
Auto ECGs: same plus ability to print 2×6+1R and 6×2+1R formats; Rhythm ECGs: 3, 6 or 12 leads at a time. |
| Frequency response |
0.3–150 Hz. |
0.3–150 Hz. |
| Digital sampling rate |
>1,000 samples/s/channel. |
>1,000 samples/s/channel. |
| CMRR (Common-mode rejection) |
Not specified. |
≥80 dB. |
| Input impedance |
Not specified. |
47 MΩ DC. |
| Filters |
0.5 Hz baseline filter, 35 Hz muscle-tremor filter, AC-interference filter selectable for 50/60 Hz. |
Same filters (0.5 Hz baseline, 35 Hz muscle tremor and 50/60 Hz AC interference). |
| Power requirements |
Universal AC power supply, 100–240 V~, 50/60 Hz~, 2.2 A max. |
Universal AC power supply 100–240 VAC at 50/60 Hz, 65 VA; rechargeable lead-acid battery (6 V, 5 Ah) prints up to 100 continuous ECGs per charge and recharges in ~12 h. |
| Connectivity |
Standard serial (COM) port and SD memory-card slot (cards ≥64 MB); optional connection to CardioPerfect™ workstation for EMR integration. |
Direct cable connection to CardioPerfect™ workstation; EMR-ready for transferring patient data. |
| Environmental conditions |
Operating temperature +10 °C to +40 °C; relative humidity 15–95% non-condensing. |
Operating temperature +10 °C to +40 °C; relative humidity 15–95% non-condensing; storage −20 °C to +49 °C. |
| Accessories (what’s included) |
Not listed explicitly; includes patient lead cable, electrodes, paper and power cord (materials included from other sources). |

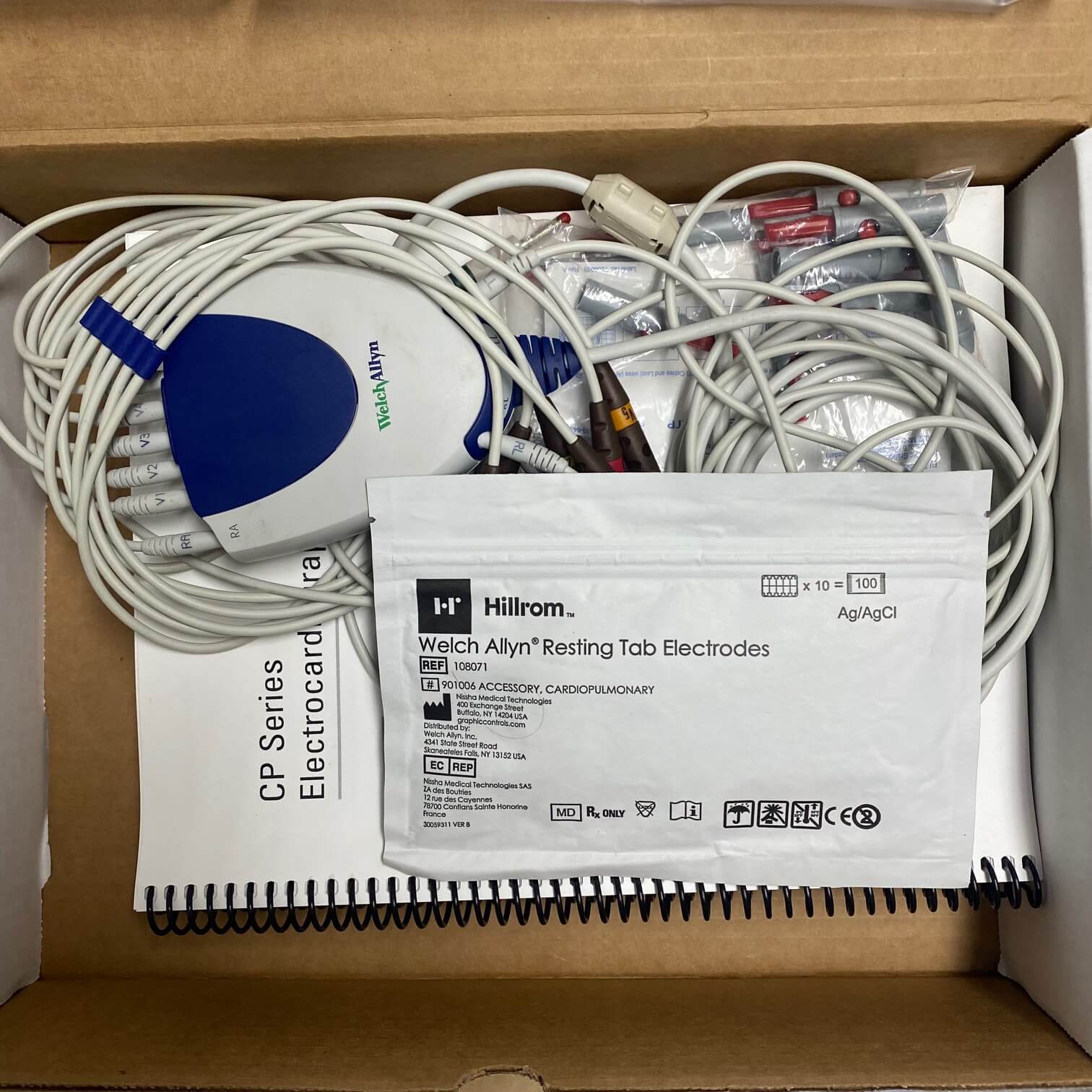

AC power cord, patient-lead cable, 10-pack resting electrodes, 100-pack disposable tab electrodes, 1-pack paper, directions for use (CD), physicians training guide and 3-year factory warranty. Optional spirometry module adds flow transducer and tubing. |
Comparison and purchase considerations
When CP 100 may be suitable?
- Budget-conscious practices or backup units. The CP 100 provides the core 12-lead ECG functionality with accurate measurements and optional interpretation software. Clinics that do not need a colour preview, memory storage or spirometry can save money by choosing this model.
- Simple workflow. Without internal memory, tests are printed immediately; there are fewer menus and the monochrome display is simple to operate.
- Small-footprint use. Because both models share the same compact chassis, the CP 100’s size and weight make it easy to use in exam rooms or on a mobile cart.
When CP 200 may be worth the extra cost?
- Need for data storage and workflow efficiency. The ability to store up to 50 ECGs and pre-load patient information enables more efficient clinics. Staff can review, edit and reprint previous ECGs without repeating tests.
- Colour waveform preview and hot keys. The larger colour LCD allows clinicians to verify signal quality before printing. Hot keys let users quickly access functions without navigating menus.
- EMR integration and administrative functions. The CP 200 supports direct connection to CardioPerfect™ workstation software and can transfer results to electronic medical records. Password log-on controls support HIPAA-compliant workflows.
- Optional spirometry. If a practice wants to perform pulmonary function tests, adding the spirometer module turns the CP 200 into a two-in-one device. This is not available on the CP 100.
Considerations for both models
- Power supply and battery life. Both devices use a universal AC power supply and include a rechargeable 6-V lead-acid battery. According to the specifications, a full charge can print up to 100 continuous ECGs and requires about 12 hours to recharge.
- Environmental tolerances. The devices operate reliably between +10 °C and +40 °C with 15–95% relative humidity, which is appropriate for most clinical environments.
- Consumables. Both models use the same Z-fold thermal paper and electrodes. Consumable costs will be similar.
- Interoperability. For practices planning to implement electronic medical records, the CP 200 offers direct EMR connectivity, whereas the CP 100 requires optional software and only provides a serial/SD interface.
