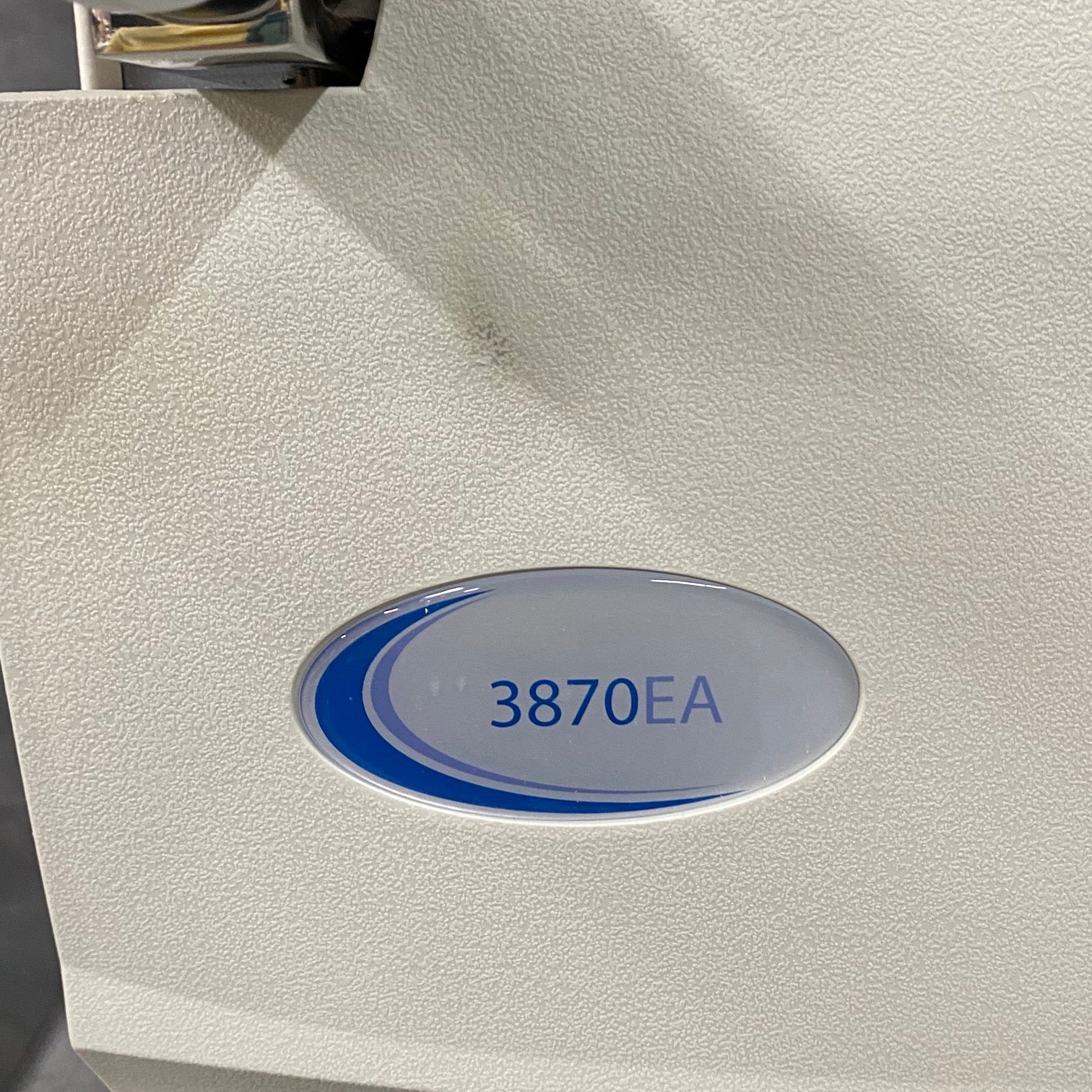

Tuttnauer 3870EA Large Capacity Autoclave

Technical Specifications of the Tuttnauer 3870 Large Capacity Autoclave

Capacity and Chamber Size:

• • Volume: 85 liters (22.5 gallons)

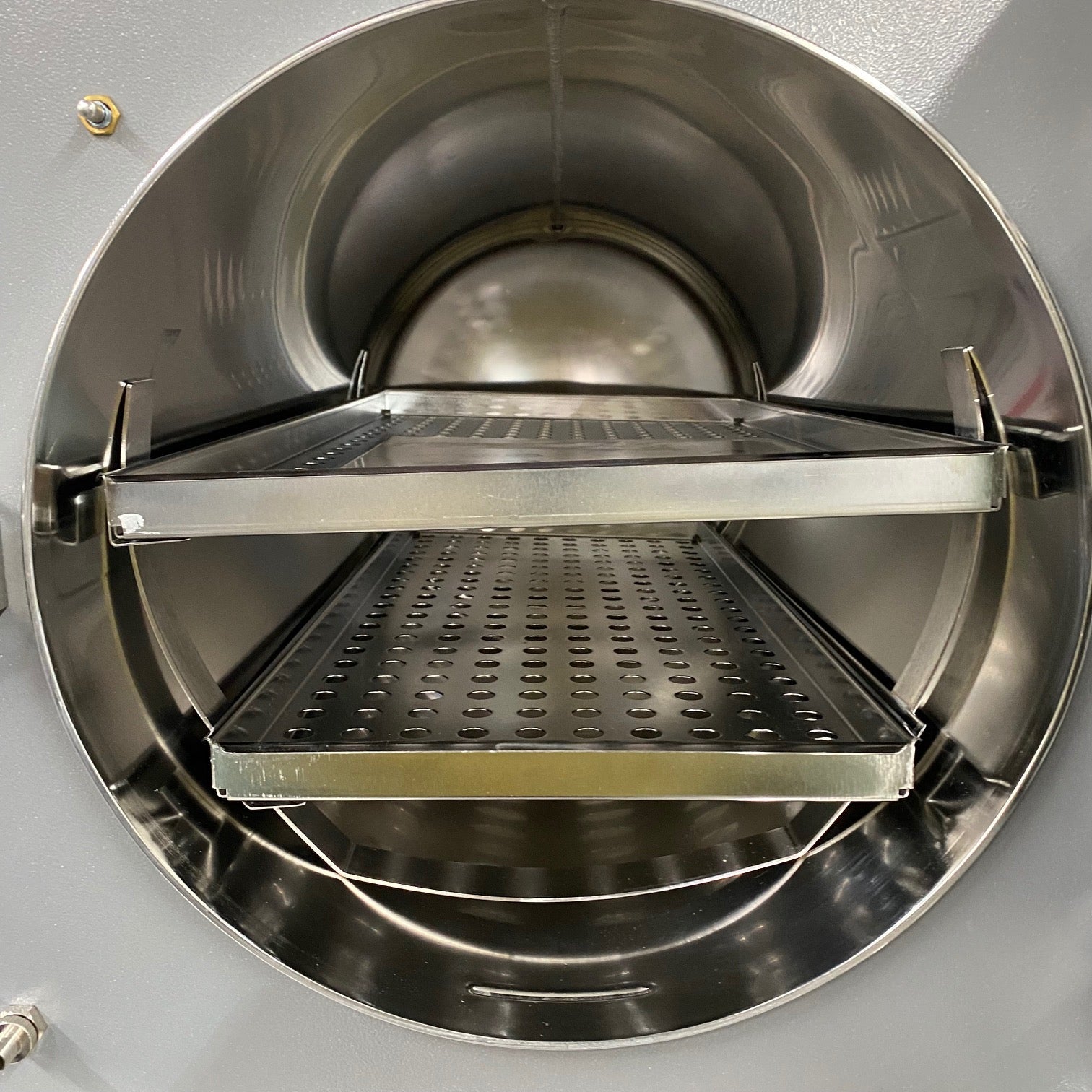

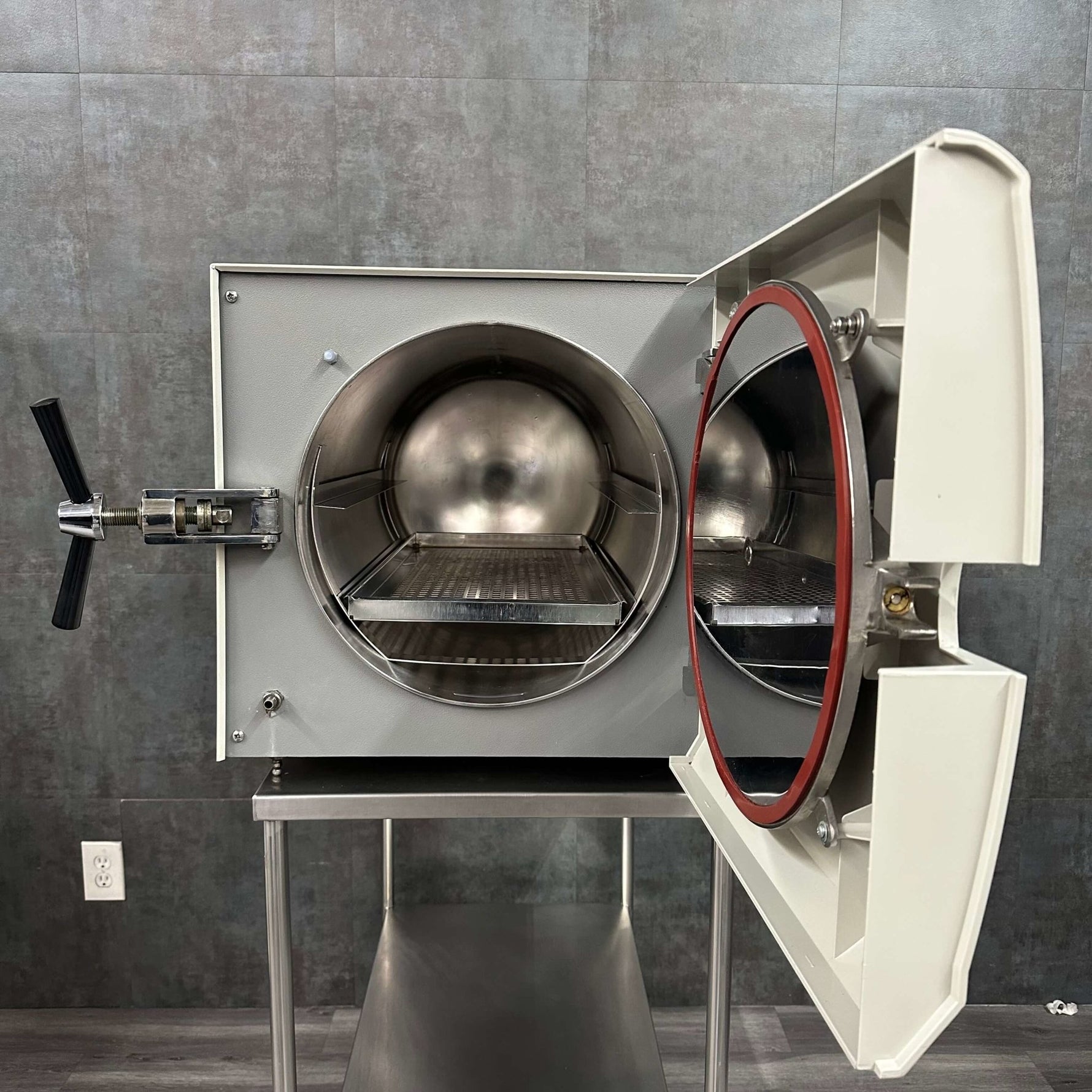

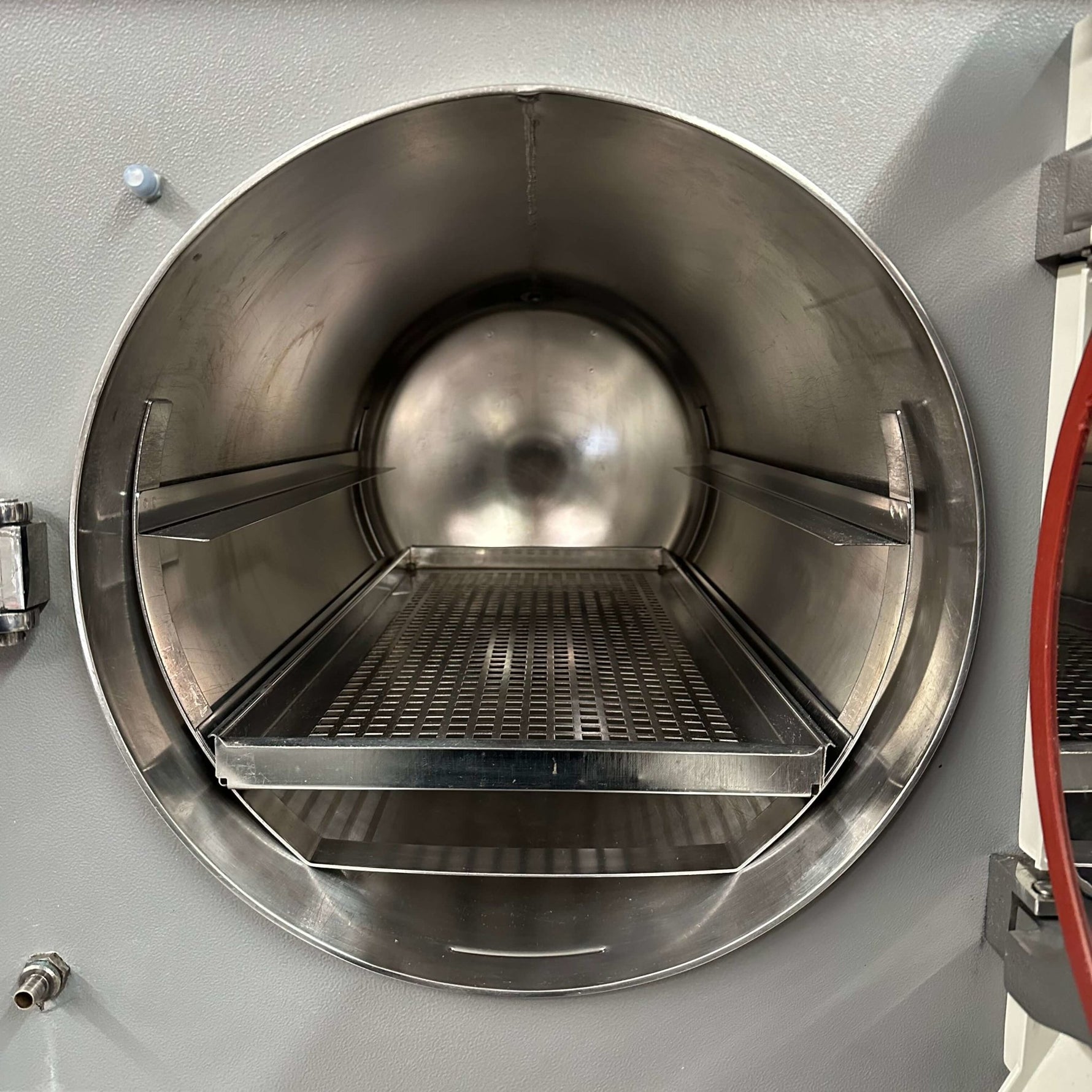

  • Chamber Dimensions: 384 mm diameter x 760 mm depth (15 inches x 30 inches)

This large volume is suitable for sterilizing a significant number of instruments or large equipment in a single cycle, making it ideal for medical facilities, laboratories, and industrial applications.

Temperature Range:

• • Operating temperature ranges from 105°C to 137°C (221°F to 279°F).

The autoclave achieves these temperatures to ensure the destruction of microorganisms, including highly resistant bacterial spores. The elevated temperature denatures proteins and disrupts cellular structures, leading to sterilization.

Pressure Range:

• The working pressure range is approximately 0.7 to 2.5 bar (10.15 to 36.25 psi)

Pressure is integral to achieving the high temperatures necessary for sterilization. The autoclave's pressure system ensures that steam penetrates materials being sterilized, facilitating efficient heat transfer and ensuring uniform temperature distribution.

Cycle Types and Control System:

• Pre-set Cycles: The autoclave features pre-programmed cycles for different load types such as instruments, liquids, and waste.
• Customizable Cycles: Users can customize cycles to meet specific requirements, adjusting parameters like temperature, pressure, and duration.

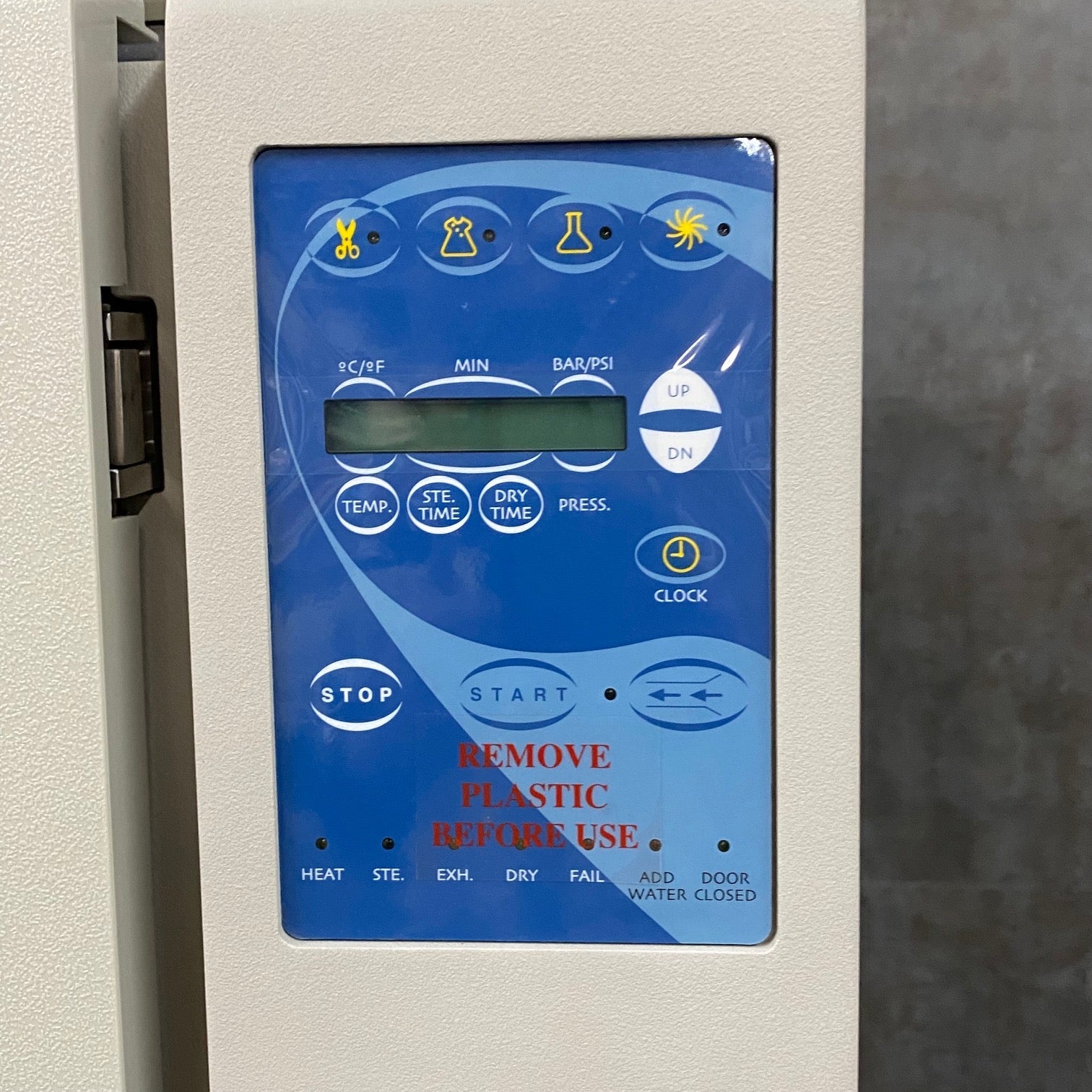

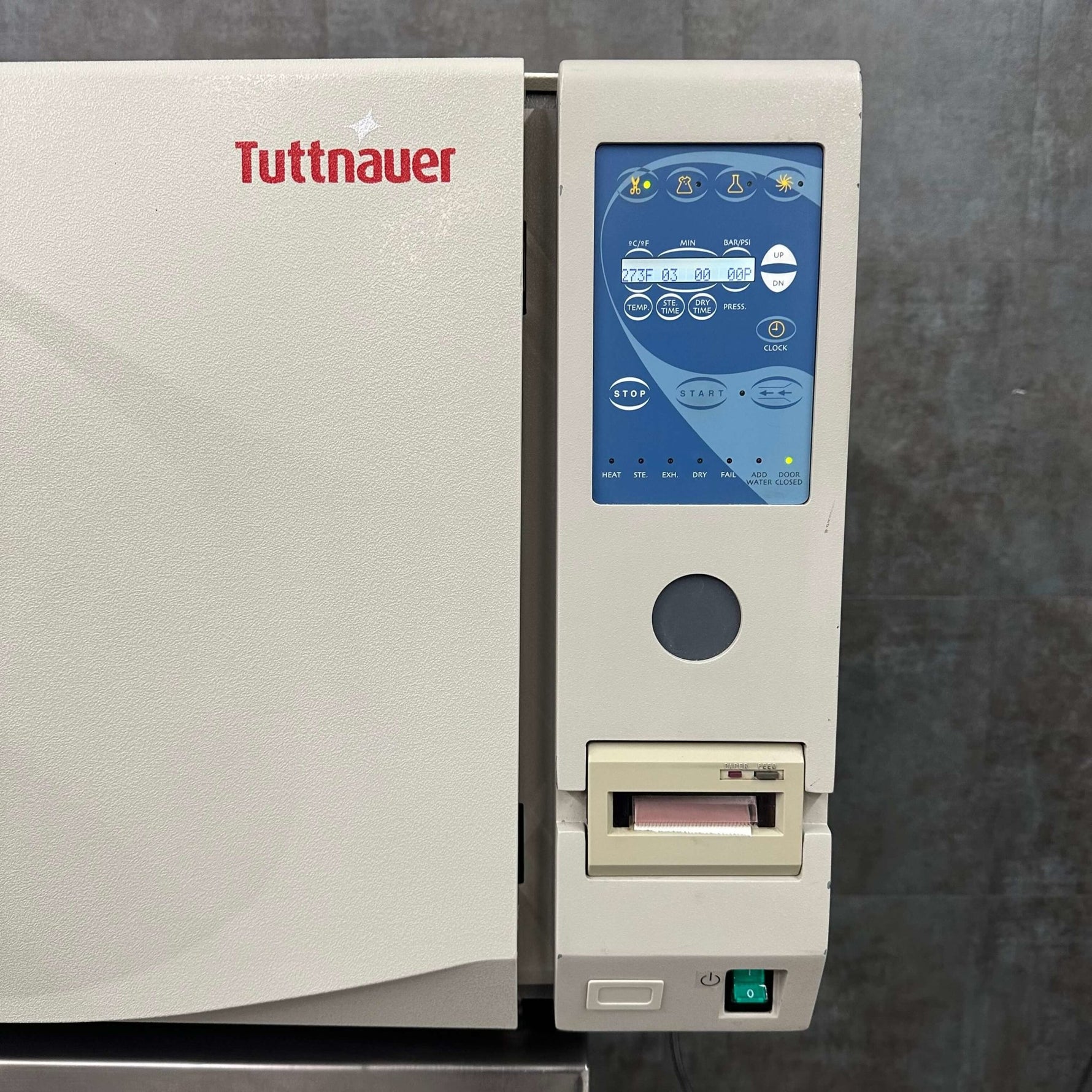

• Control System: Utilizes a microprocessor-based control system to precisely regulate operating conditions. The digital interface allows users to monitor real-time cycle parameters and make adjustments as needed.

Safety Features:

• Automatic Shut-off: The autoclave automatically shuts off at the end of sterilization and drying cycles to prevent overheating and overuse.
• Safety Valve: Prevents over-pressurization by releasing excess pressure, thereby safeguarding the system.
• Door Safety Lock: Ensures that the door cannot be opened while the chamber is pressurized, preventing accidents and ensuring user safety.

Construction:

• Materials: The autoclave is constructed from high-grade stainless steel, which is resistant to corrosion and ensures durability under high-pressure and high-temperature conditions.
• Design: Ergonomic design features facilitate easy loading and unloading, and the construction supports efficient heat transfer and pressure maintenance.


Principles of Operation

Sterilization by Saturated Steam

• Mechanism: The primary sterilization method involves saturated steam under pressure. The steam transfers heat to the items within the chamber, and the combination of high temperature and moisture denatures proteins and disrupts cell membranes and DNA.
• Temperature and Pressure Correlation: The autoclave uses the principle that water boils at higher temperatures when under pressure. By increasing the pressure within the chamber, the boiling point of water (and thus the temperature of the steam) increases, allowing for more effective sterilization.


Microprocessor Control

• Function: The microprocessor manages the cycle parameters (temperature, pressure, and time) with high precision. It receives input from sensors within the chamber and adjusts heating elements and valves to maintain the desired conditions.
• Advantages: This control system enhances repeatability and reliability of sterilization cycles, ensuring consistent performance and effective sterilization.


Heat Transfer and Moisture Penetration

• Heat Transfer: Effective sterilization requires uniform heat distribution. The autoclave’s design ensures that steam circulates throughout the chamber, transferring heat to all surfaces of the items being sterilized.
• Moisture Penetration: Moist heat (steam) is more effective at penetrating materials than dry heat. The steam condenses on cooler surfaces, releasing latent heat and ensuring thorough sterilization of complex instruments and porous materials.

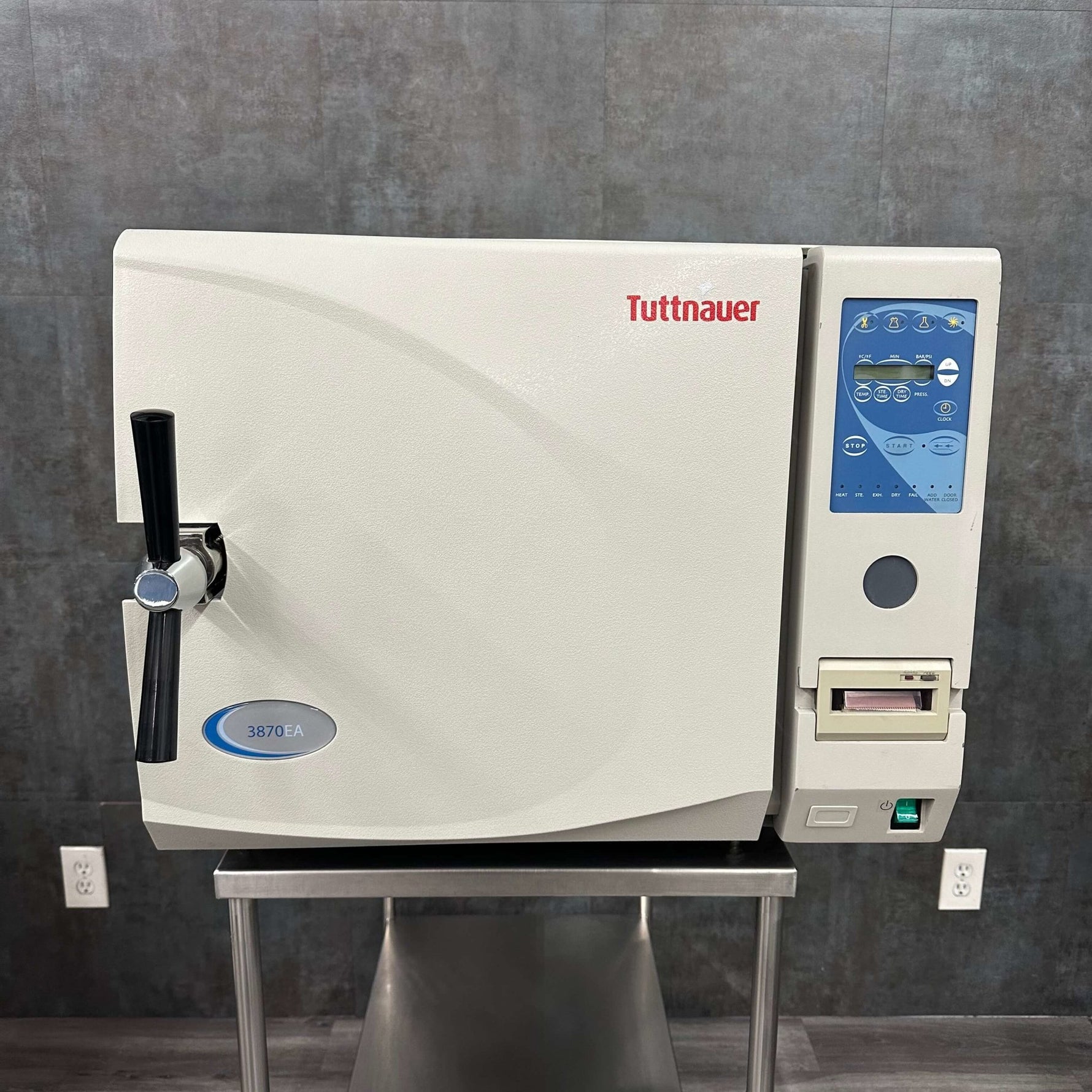

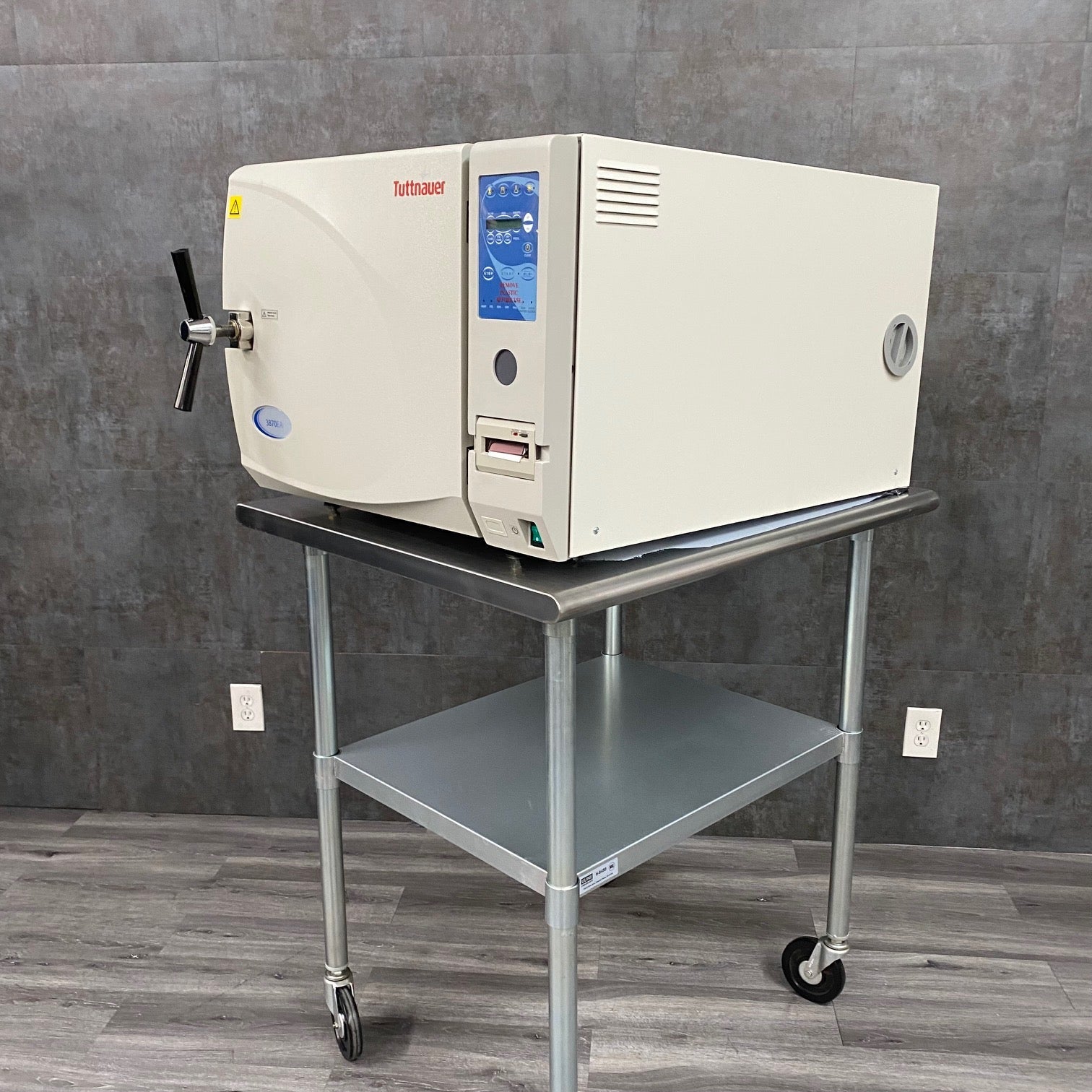

Tuttnauer 3870 Large Capacity Autoclave

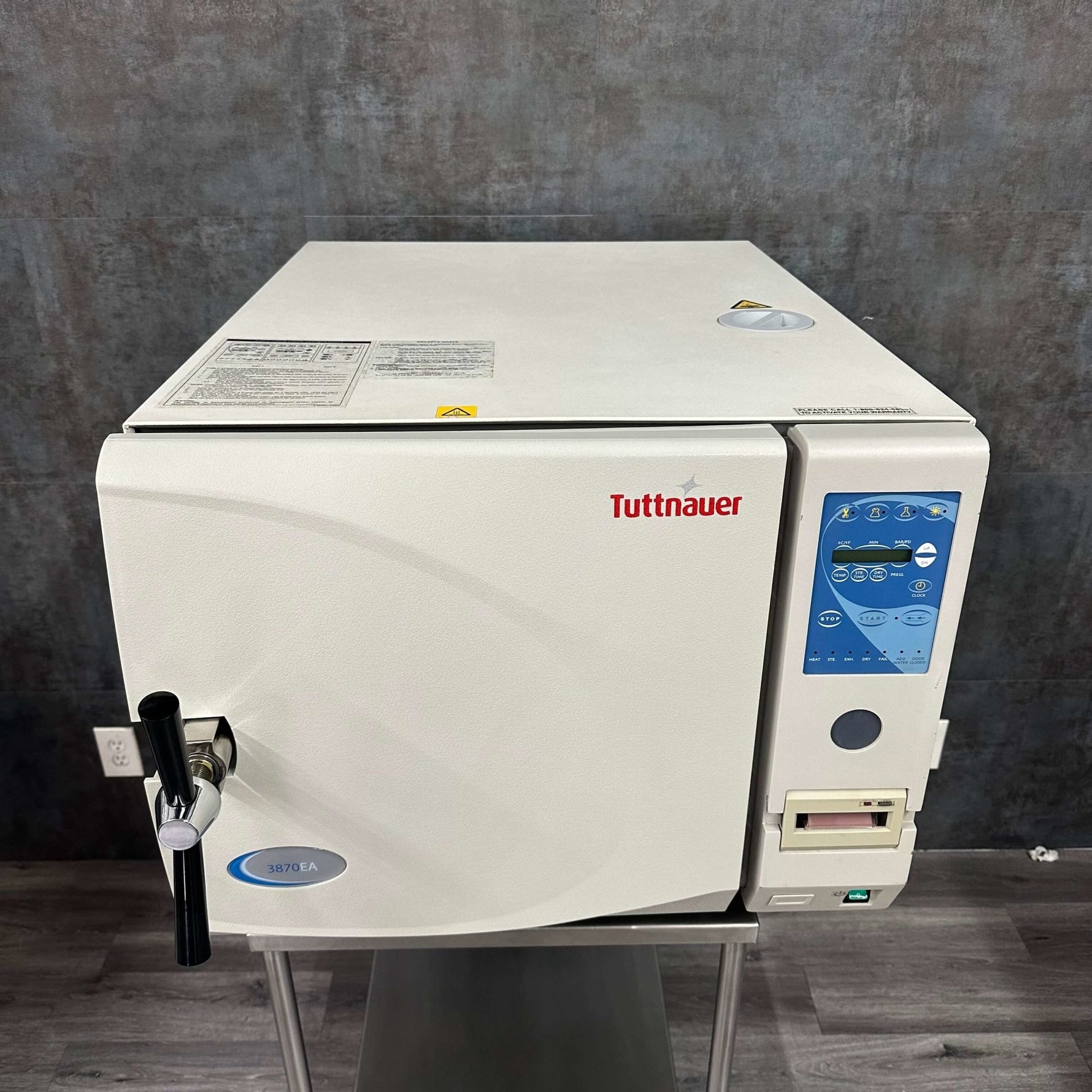

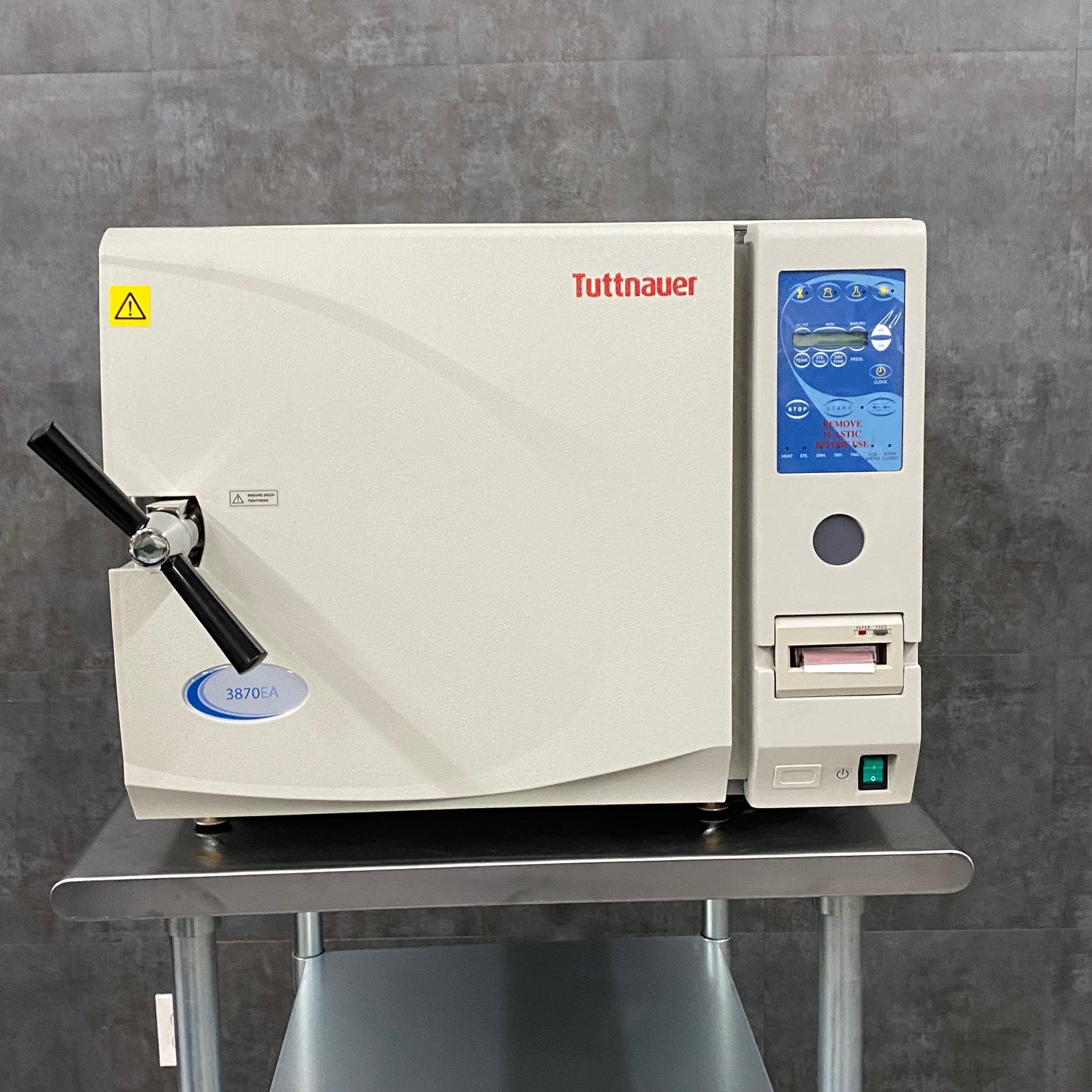

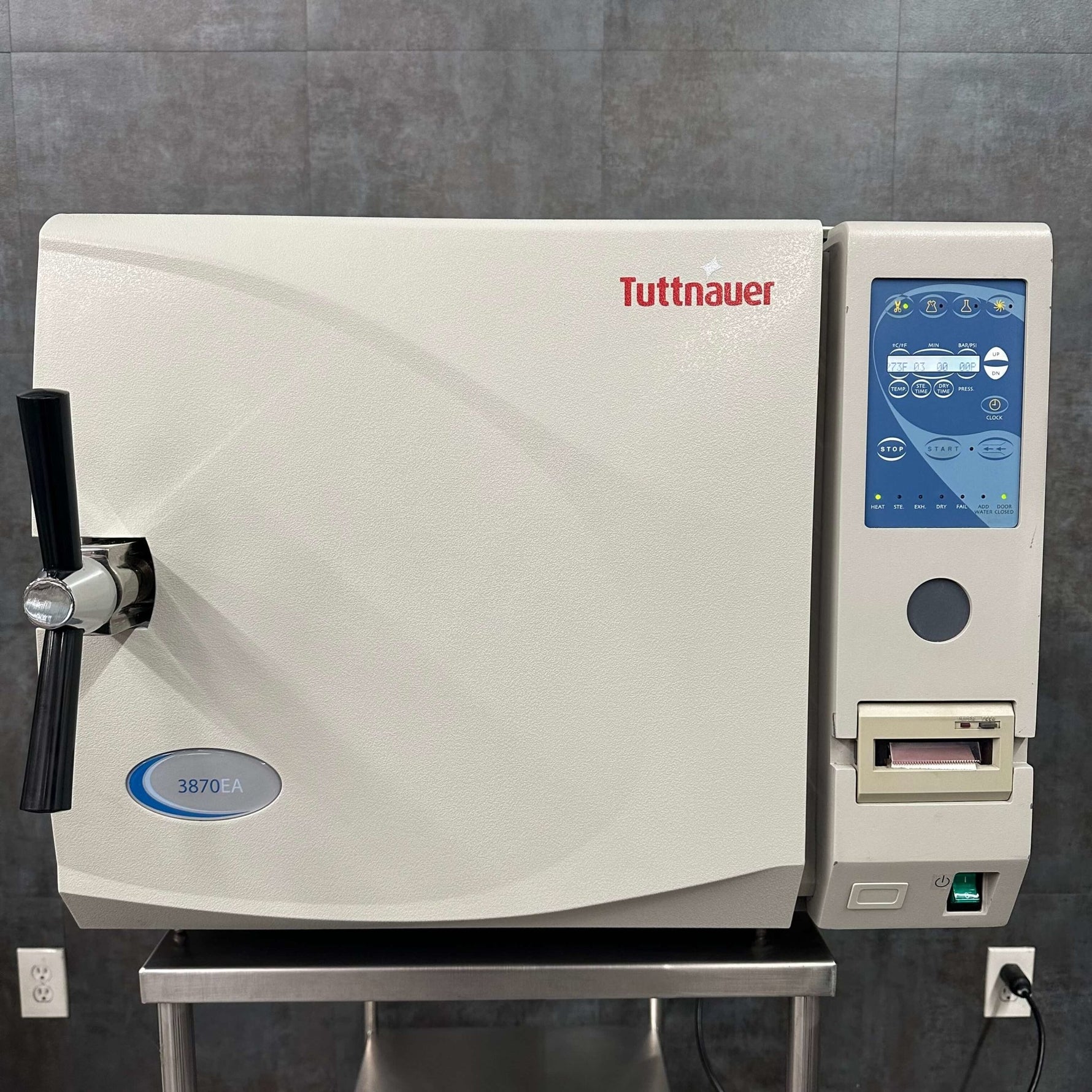

The 3870EA is Tuttnauer's largest table top autoclave. It's large chamber accommodates longer instruments or a large number of small instruments. It has the capacity for 15 full size IMS cassettes. The steam pressure autoclave can also be used in busy group practices, emergency clinics, nursing homes, veterinary clinics, and small hospitals.

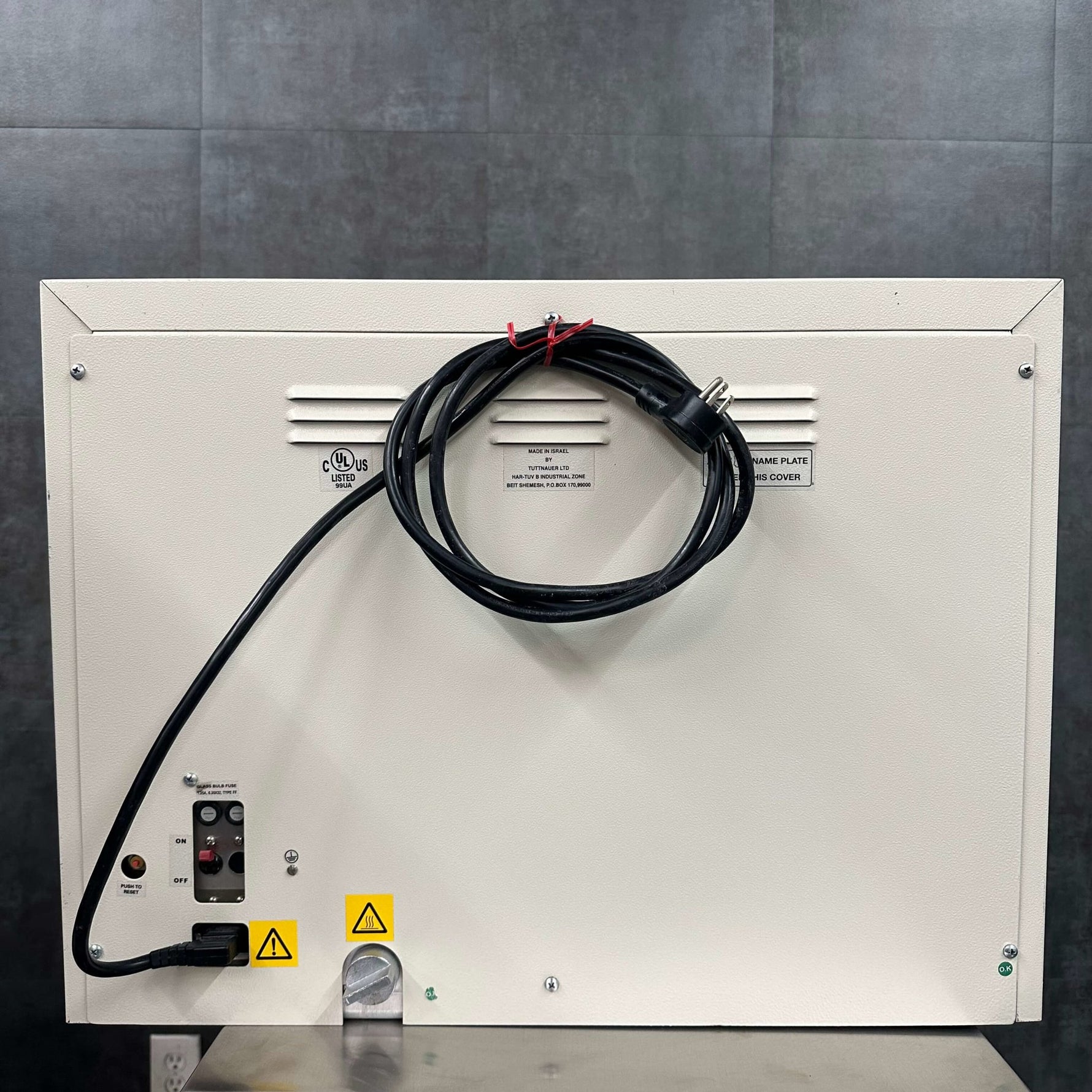

This autoclave is not hardwired, and comes with a standard 230 V Plug. It is recommended that upon purchase of this product, an electrician be the one to install a box booster to handle the voltage fluctuation. No additional plumbing is required.

Importance of Specific Features of Tuttnauer 3870

• Steam Sterilizer
• Standard Unwrapped Cycle Time (cycle times are approximate and may vary depending on instrument loads):
  • Cold: 32 minutes.
  • Hot: 23 minutes.

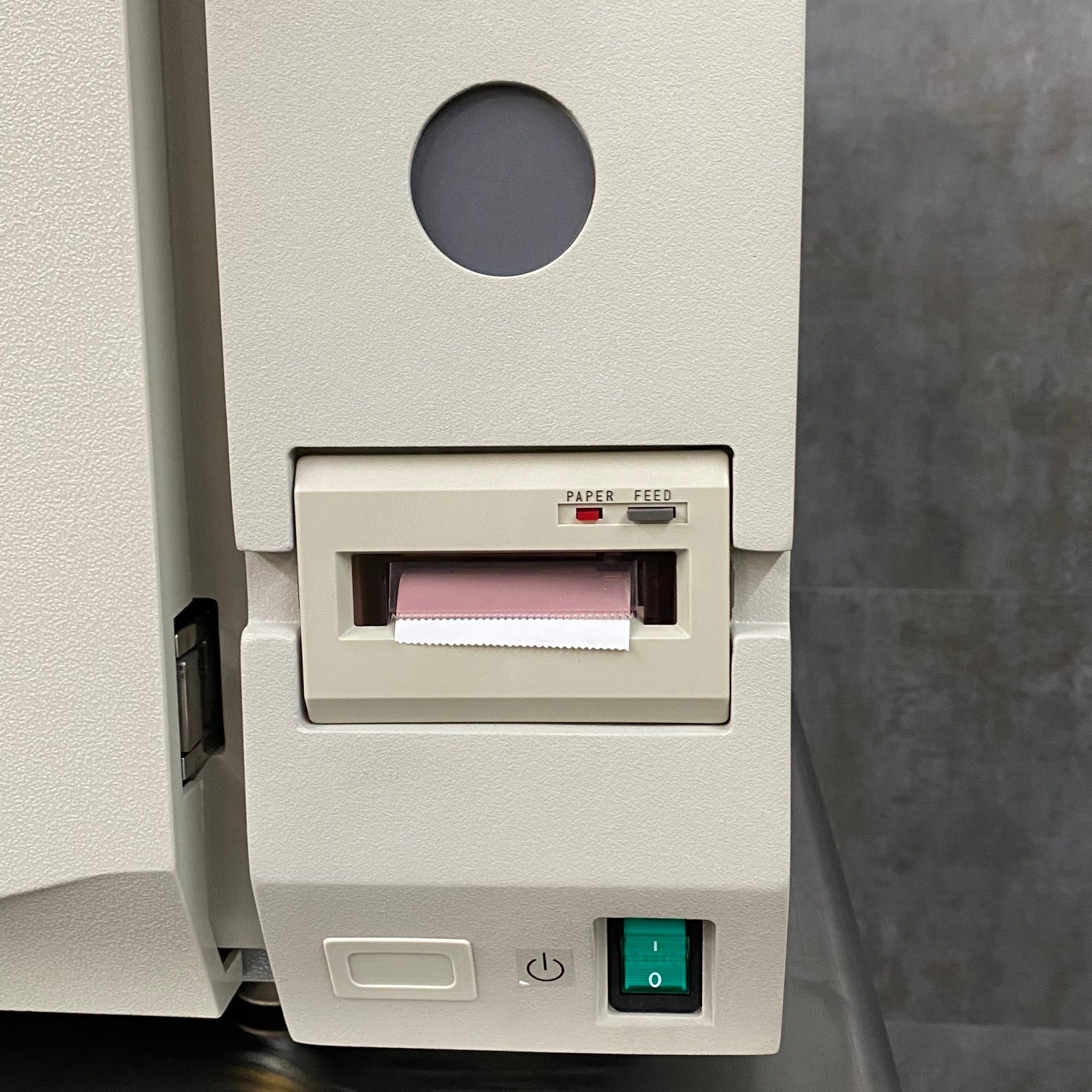

• Integrated printer for cycle, date, time, temperature, and pressure documentation
• Large Capacity: The 85-liter chamber size allows for sterilizing larger batches or bulky items, increasing efficiency in high-demand settings.

• Precise Control: The microprocessor-based control system ensures that all parameters are tightly regulated, reducing the risk of user error and ensuring consistent results.

• Safety Measures: Multiple safety features protect both the user and the equipment, making the autoclave reliable and safe to operate in a professional setting.


By understanding these technical specifications and scientific principles, you can appreciate the capabilities and advantages of the AngelUS Medical 3870 Large Capacity Autoclave in sterilization processes, particularly when compared to other models such as the Tuttnauer 3870EA.

Specialty / Medical Practice

Surgery Center, Hospitals, Orthopedics, etc.

Specifications

• Product Usage: Sterilization of surgical instruments
• Brand: Tuttnauer
• Capacity: Up to 15 standard cassettes
• Warranty: 90 days parts and labor
• Dimensions:

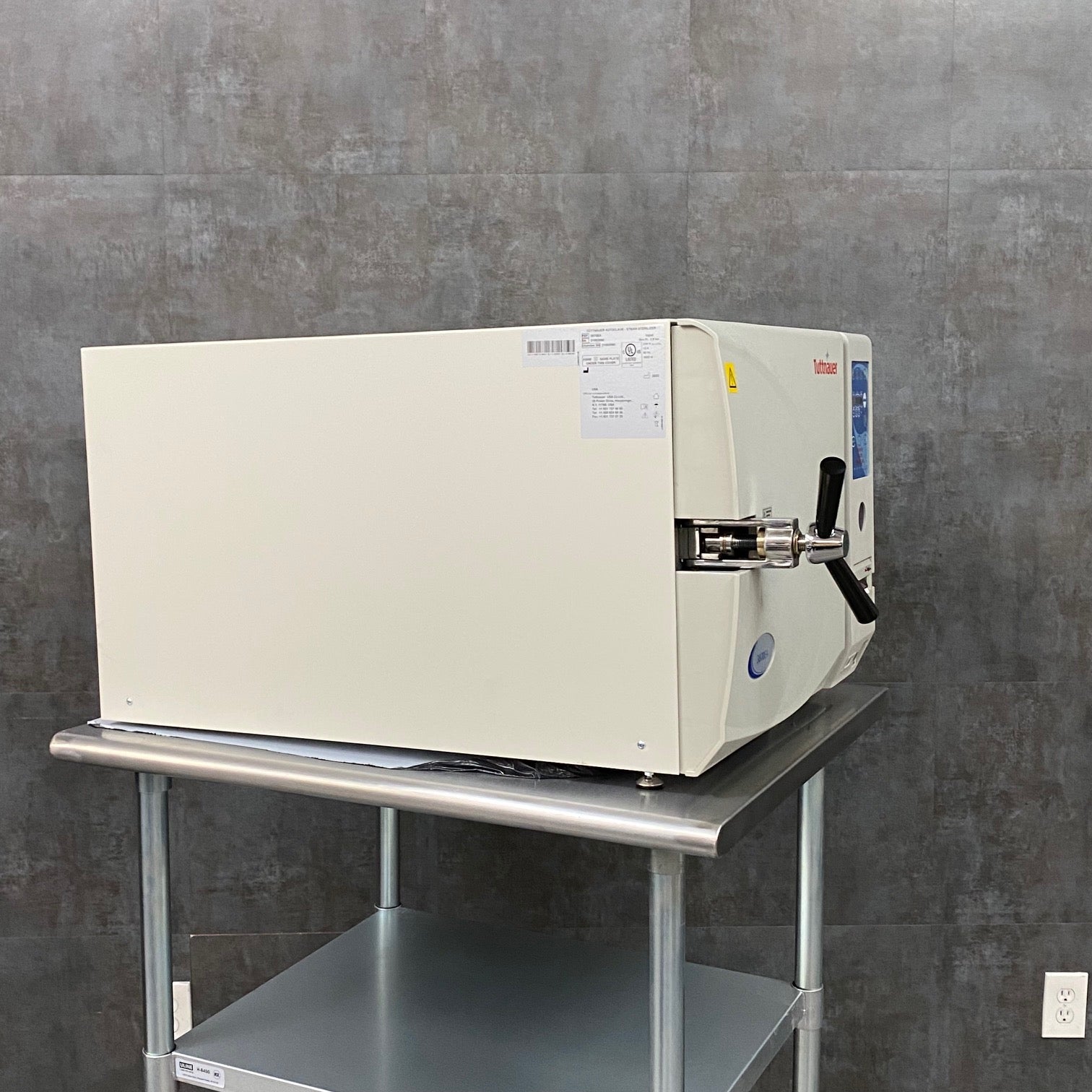

• Overall: 34.5" (D) x 26" (W) x 20.6" (H)
• Chamber: 15" x 30"
• Voltage: 230 V, 3000 W, 13.6 Amps
• Days to be ready: 1-2

Frequently Asked Questions

How do I install the Tuttnauer 3870EA?

To install the Tuttnauer 3870EA, place it on a stable, level surface near a power source. Connect it to the appropriate electrical outlet as specified in the manual. Ensure that the area around the autoclave is well-ventilated. Follow the step-by-step installation instructions provided in the user manual to complete the setup.

What is the correct way to load items for sterilization?

Arrange the instruments and items in the chamber so that steam can circulate freely around them. Avoid overloading the chamber, and ensure that items do not touch the walls. Place smaller items on the top racks and larger items on the bottom. This ensures effective sterilization by allowing steam to reach all surfaces.

How do I know which cycle to use for different instruments?

Refer to the user manual for guidance on selecting the appropriate cycle. Different cycles are designed for various materials and instrument types. For example, delicate instruments may require a shorter cycle, while heavily soiled items may need a longer, more intensive cycle. The manual provides detailed instructions for choosing the right settings.

How do I keep the autoclave clean and prevent debris buildup?

Regular cleaning is essential to maintain the autoclave’s performance. After each use, wipe down the chamber and trays with a soft cloth and a mild detergent. Avoid using harsh chemicals. Periodically, perform a deeper clean as instructed in the manual, including checking and cleaning filters and other components to prevent debris buildup.

What should I do if the autoclave shows an error code?

If an error code appears, consult the troubleshooting section of the user manual. Each error code corresponds to a specific issue, with recommended actions for resolution. Common fixes might include checking power connections, ensuring the door is properly closed, or resetting the machine. If the problem persists, contact customer support for assistance.

How often should I perform maintenance on the autoclave?

Routine maintenance should be performed regularly to ensure optimal performance. This includes daily cleaning, weekly checks of the chamber and door seals, and monthly inspections of the filters and other components. Follow the maintenance schedule provided in the user manual for detailed instructions.

How do I safely remove sterilized items from the autoclave?

Wait until the sterilization cycle is complete and the autoclave has cooled down. Ensure the pressure has fully released before opening the door. Use heat-resistant gloves to handle the sterilized items to avoid burns. Carefully unload the items, ensuring they do not come into contact with any unsterile surfaces.
