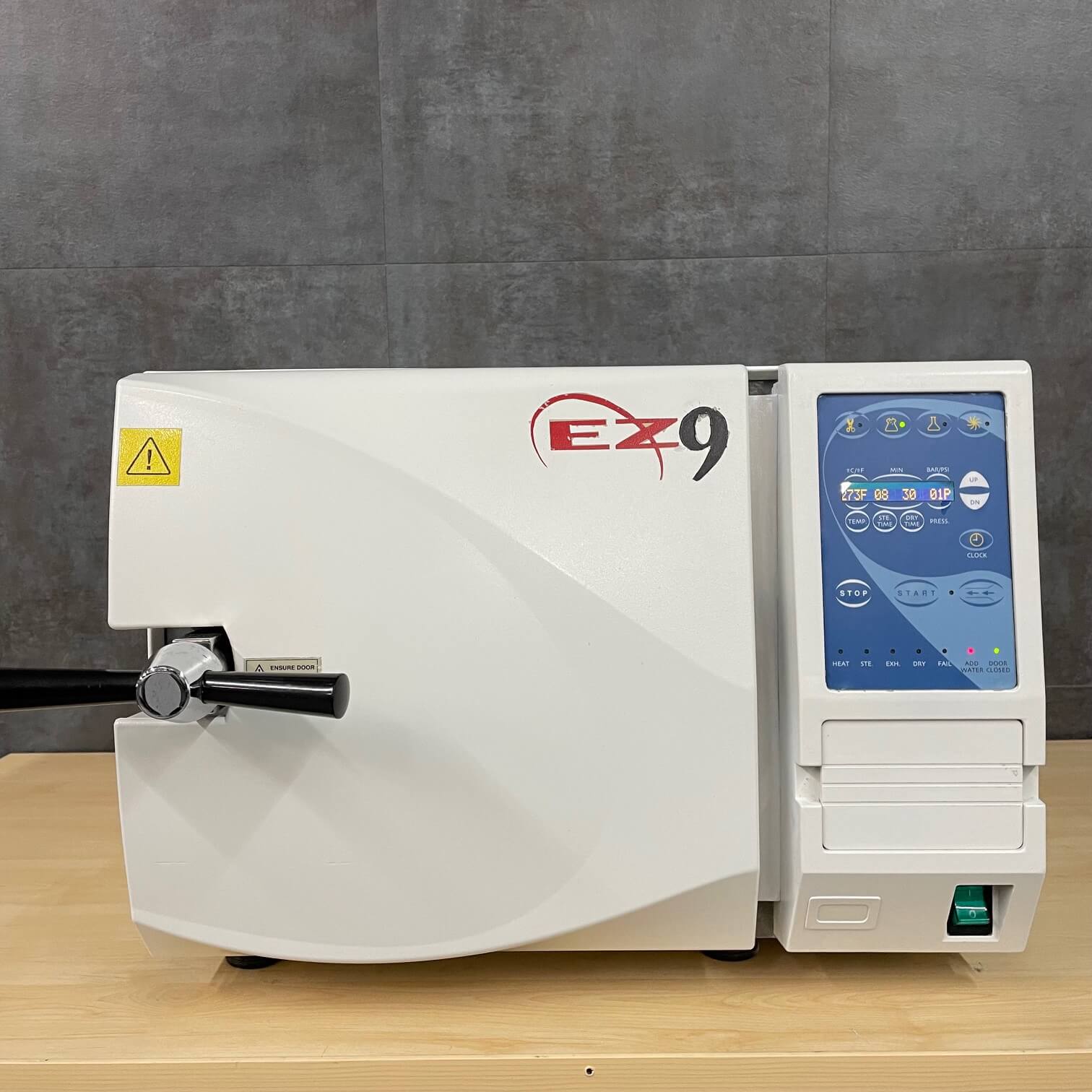

Tuttnauer EZ9

Technical Specifications of the Tuttnauer EZ9 Autoclave

Capacity and Chamber Size

• Volume: 19 liters (5 gallons)
• Chamber Dimensions: 230 mm diameter x 470 mm depth (9 inches x 18.5 inches)

This capacity is suitable for small to medium-sized loads, making it ideal for dental offices, small medical practices, and laboratories that require efficient sterilization of instruments and equipment. The Tuttnauer EZ9 autoclave is another excellent option for reliable and effective sterilization in similar settings.

Temperature Range

• Operating temperature ranges from 105°C to 137°C (221°F to 279°F).

These temperatures ensure the destruction of a wide range of microorganisms, including highly resistant bacterial spores. The autoclave operates by using saturated steam to denature proteins and disrupt cellular structures, ensuring effective sterilization.

Pressure Range

• The working pressure range is approximately 0.7 to 2.5 bar (10.15 to 36.25 psi).

Pressure is a critical component in achieving the necessary high temperatures for sterilization. By increasing the pressure within the chamber, the boiling point of water is raised, allowing the steam to reach higher temperatures and penetrate materials more effectively.

Cycle Types and Control System

• Pre-set Cycles: The Tuttnauer EZ9 features several pre-programmed cycles tailored to different types of loads, such as wrapped instruments, unwrapped instruments, packs, and liquids.
• Customizable Cycles: Users can customize cycles to meet specific sterilization needs, adjusting parameters such as temperature, pressure, and duration.
• Control System: The autoclave is equipped with a fully automated control system that accurately manages the operating parameters. The digital interface provides real-time monitoring and adjustments, ensuring precise control over the sterilization process.


Safety Features

• Automatic Shut-off: The autoclave automatically shuts off at the end of the sterilization and drying cycles to prevent overheating and overuse.
• Safety Valve: Prevents over-pressurization by releasing excess pressure, thereby protecting the system and ensuring user safety.
• Door Safety Lock: Ensures that the door cannot be opened while the chamber is pressurized, preventing accidents and ensuring safe operation.


Construction

• Materials: The autoclave is constructed from high-quality stainless steel, which provides resistance to corrosion and ensures durability under high-pressure and high-temperature conditions.
• Design: The compact design facilitates efficient use of space and ease of operation, with an intuitive loading and unloading process.


Principles of Operation

Sterilization by Saturated Steam

• Mechanism: The primary sterilization method used by the Tuttnauer EZ9 involves saturated steam under pressure. The steam transfers heat to the items within the chamber, and the combination of high temperature and moisture denatures proteins and disrupts cell membranes and DNA, leading to effective sterilization.
• Temperature and Pressure Correlation: The autoclave operates on the principle that water boils at higher temperatures when under increased pressure. By raising the pressure within the chamber, the boiling point of water (and thus the temperature of the steam) increases, enabling the steam to achieve the necessary conditions for sterilization.

Automated Control System

• Function: The automated control system manages the cycle parameters (temperature, pressure, and time) with high precision. It receives input from sensors within the chamber and adjusts the heating elements and valves to maintain the desired conditions.
• Advantages: This control system enhances the repeatability and reliability of the sterilization cycles, ensuring consistent performance and effective sterilization across different loads and materials.


Heat Transfer and Moisture Penetration

• Heat Transfer: Effective sterilization requires uniform heat distribution. The autoclave’s design ensures that steam circulates throughout the chamber, transferring heat to all surfaces of the items being sterilized.
• Moisture Penetration: Moist heat (steam) is more effective at penetrating materials than dry heat. The steam condenses on cooler surfaces, releasing latent heat and ensuring thorough sterilization of complex instruments and porous materials.


Tuttnauer EZ9 Autoclave - Refurbished

The Tuttnauer EZ 9 Autoclave is a cutting-edge sterilization device widely used in medical, dental, and laboratory settings. It is designed to efficiently and effectively sterilize instruments, equipment, and supplies through a process known as autoclaving.

The Tuttnauer EZ 9 Autoclave is incredibly user-friendly and offers a seamless sterilization process. It employs steam sterilization, which is one of the most reliable methods available. With a user-friendly control panel, it allows for easy operation and programming of sterilization cycles. The autoclave is equipped with a stainless steel chamber, which ensures durability and long-term performance.

Benefits

1. Efficient Sterilization: The Tuttnauer EZ 9 Autoclave provides rapid and efficient sterilization. Its high-capacity chamber can accommodate a variety of instruments and equipment, reducing the need for multiple cycles.
2. Versatility: This autoclave is suitable for a wide range of applications, including medical and dental offices, clinics, tattoo studios, and research laboratories.
3. Safety Features: The autoclave is equipped with safety mechanisms such as automatic shut-off, overheat protection, and a pressure interlock system to prevent accidents and ensure user safety.
4. Advanced Technology: It incorporates advanced features such as a drying cycle and a pre-vacuum system that removes air from the chamber, ensuring thorough sterilization.

Specifications for Tuttnauer EZ9 Autoclave:

• Chamber Dimensions: 9″ Diameter x 18″ L
• Volume: 5 Gal (19 liters)
• Overall Dimensions: 21.5” D x 20” W x 14.4” H
• Shipping Weight: 95 lb. (43 kg)

Standard Unwrapped Cycle Time:

• Cold: 27 mins
• Hot: 13 mins
• Voltage: 120 V
• Frequency: 50/60 Hz
• Power: 1400 W
• Current: 12 A

Importance of Specific Features

• Compact Capacity: The 19-liter chamber size is suitable for smaller practices and clinics, providing sufficient space for daily sterilization needs without requiring a large footprint.
• Precise Control: The fully automated control system ensures that all parameters are tightly regulated, reducing the risk of user error and ensuring consistent results.
• Safety Measures: Multiple safety features protect both the user and the equipment, making the autoclave reliable and safe to operate in a professional setting.


Related Collections:

• Autoclave Machine
• Autoclave Accessories
• Autoclave Carts
• Autoclave Service and Repair

As a trusted reseller, AngelUS Medical offers the Tuttnauer EZ9 Autoclave, providing advanced sterilization technology to medical and laboratory facilities. Our commitment to quality ensures that you receive equipment that is not only advanced and reliable but also backed by exceptional customer support and service.

Equip your facility with the best in sterilization technology through AngelUS Medical, and experience the benefits of high-performance autoclaves that meet the highest standards of safety and efficiency. Choose AngelUS Medical for unparalleled expertise and top-tier Tuttnauer autoclaves.

Frequently Asked Questions

How does the Tuttnauer EZ 9 Autoclave work?

The autoclave uses a combination of high-pressure steam and heat to sterilize items. The steam penetrates the instruments, killing microorganisms and eliminating the risk of infection.

What kind of instruments can be sterilized using this autoclave?

The Tuttnauer EZ 9 Autoclave is suitable for a wide range of instruments, including metal surgical, dental, and veterinary instruments, glassware, handpieces, and textiles.

How long does a typical sterilization cycle take?

The duration of a sterilization cycle varies depending on the load and settings. Generally, a standard cycle takes approximately 15-30 minutes for sterilization, plus additional time for drying.

Is the Tuttnauer EZ 9 Autoclave easy to maintain?

Yes, it is relatively low maintenance. Regular cleaning of the chamber and routine maintenance checks are recommended. The autoclave also has a self-diagnostic system that alerts users to any potential issues and simplifies maintenance.

Can the Tuttnauer EZ 9 Autoclave handle delicate instruments?

Yes, the autoclave offers customizable sterilization cycles that allow for gentle processing of delicate instruments, ensuring their integrity and longevity.

Is the Tuttnauer EZ 9 Autoclave environmentally friendly?

Yes, the autoclave operates with water and steam, making it a more eco-friendly sterilization method compared to chemical-based alternatives.
