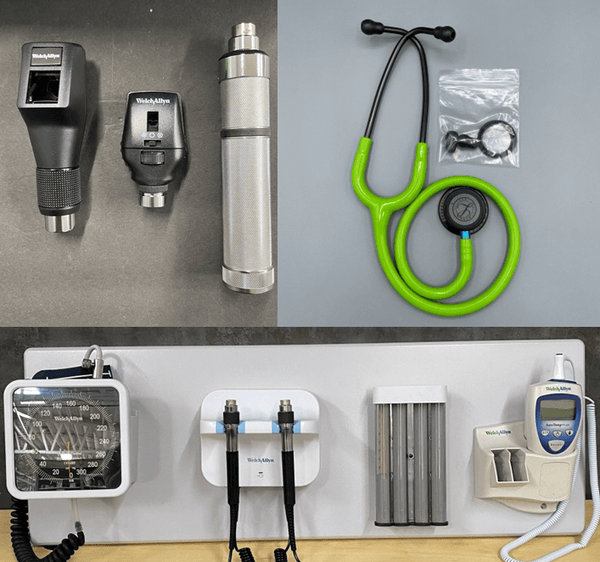

Diagnostic Set

What are Diagnostic Set?

Diagnostic set typically include a range of instruments, such as an otoscope, ophthalmoscope, blood pressure cuff, and sometimes a thermometer. These tools allow you to examine ears for signs of infection, eyes for vision problems, measure blood pressure to check for hypertension, and take temperature to monitor for fever.

Their Role in Health Monitoring

The role of a diagnostic set from AngelUS Medical is to give a snapshot of your health. Just as a dashboard tells you about the status of your car, these tools give you immediate information about different functions of your body. They're crucial in identifying if something's not right, potentially long before you'd notice any symptoms.

Importance of Reliable Diagnostic Set for Personal Health Management

Having a reliable set means you're equipped to regularly check and manage your health or that of your family. Regular checks can pick up early signs of illness, allowing you to seek medical advice early. It’s like doing regular maintenance on your car it can prevent big problems down the road.

By using these tools, you can track your health over time. For example, if your blood pressure readings begin to rise gradually, it could be an early warning of cardiovascular issues, and it’s a signal to talk to your doctor

Components of a Diagnostic Set

Component	Description	Function in Health Assessment
Stethoscope	A tool with earpieces and a small disc-shaped resonator that's placed against the chest.	Listens to the sounds of the heart, lungs, and intestines to ensure they're working properly.
Otoscope	A handheld device with a light and a cone-shaped attachment that goes into the ear.	Checks the inside of the ears for infections or blockages.
Ophthalmoscope	Similar to an otoscope, but it has different lenses for examining the back of the eye.	Examines the health of your eyes, including the retina and optic nerve.
Blood Pressure Cuff (Sphygmomanometer)	A band that wraps around the arm and inflates to measure blood pressure.	Measures how forcefully blood is pushing against the walls of your arteries, indicating heart health.
Thermometer	A device that measures body temperature.	Checks if you have a fever, which can be a sign of infection or illness.



Each tool in the Welch Allyn diagnostic set plays a unique role in gauging different aspects of health, from making sure your heart is beating as it should to confirming your ears and eyes are in good shape. They're designed for easy use, with features that help both professionals and individuals alike get accurate health readings. Whether you choose a full medical Diagnostic Set or specific sets like an otoscope otoscope set or an ophthalmoscope and otoscope set, each component adds a valuable piece to the health assessment

How to Use AngelUS Diagnostic Set Effectively

Blood Pressure Monitors

• Product Example: ADC Sphygmomanometer
• Guide: Secure the cuff on the patient's upper arm, align the artery marker, inflate the cuff, and use the stethoscope to listen for the Korotkoff sounds.
• Tips: Ensure the patient is seated comfortably and has rested for a few minutes before taking a reading.
• Mistakes to Avoid: Using the wrong cuff size can result in inaccurate readings. Do not place the cuff over clothing.

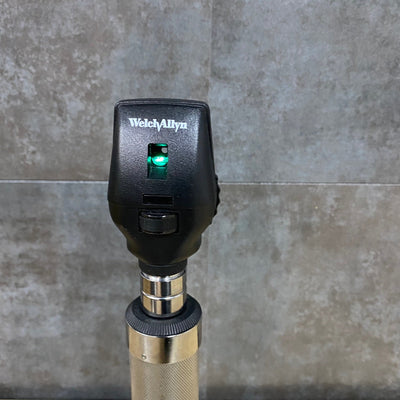

Ophthalmoscopes & Retinoscopes

• Product Example: Welch Allyn 777 Integrated Diagnostic System
• Guide: Choose the correct aperture and filter, dim the room lights, and instruct the patient to focus on a distant point. Look through the ophthalmoscope as you approach the patient's eye.
• Tips: Start with a zero diopter and adjust as necessary to bring the retina into focus.
• Mistakes to Avoid: Rushing the examination which can lead to missed diagnoses.

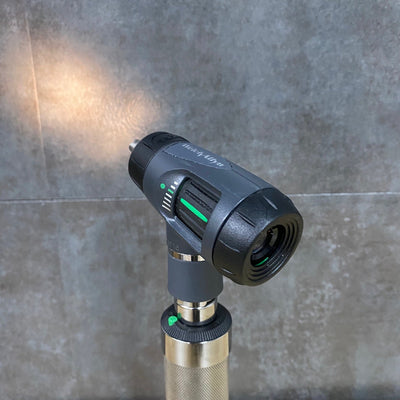

Otoscopes

• Product Example: Welch Allyn Otoscope
• Guide: Attach an appropriately-sized speculum, turn on the light, and gently insert the otoscope into the ear canal while bracing against the patient’s head.
• Tips: Straighten the ear canal by pulling the ear upward and backward in adults or downward and backward in children.
• Mistakes to Avoid: Inserting the speculum too far or using a speculum that is too large for the ear canal.

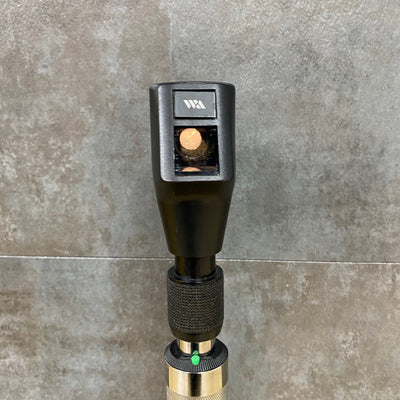

Retinoscopes

• Product Example: Heine EN 100 Wall Transformer with Retinoscope
• Guide: Focus the light beam on the patient's pupil and move it vertically or horizontally to observe the reflex.
• Tips: Have the patient look in the distance to relax their accommodation.
• Mistakes to Avoid: Not accounting for astigmatic refraction, which can be detected by a skewed or irregular reflex.

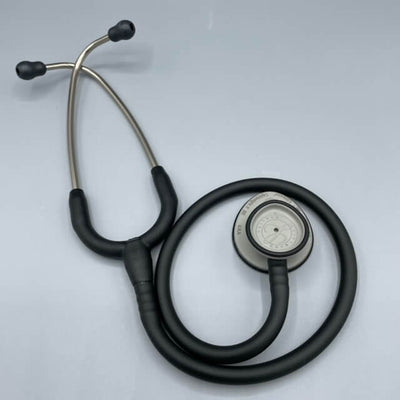

Stethoscopes

• Product Example: Littmann Stethoscope
• Guide: Place the diaphragm or bell over the area of interest on the patient's body and listen for sounds, adjusting pressure as needed.
• Tips: Ensure proper ear tip direction for a tight seal and optimal sound transmission.
• Mistakes to Avoid: Using the stethoscope with cold earpieces or diaphragm as this can cause patient discomfort and affect cooperation.

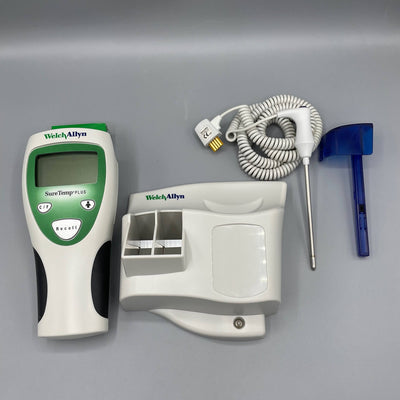

Thermometers

• Product Example: ADC Digital Thermometer
• Guide: Turn on the thermometer, place it in the appropriate location (oral, axillary, or rectal), wait for the beep, and then read the temperature.
• Tips: Wait at least 15 minutes after the patient eats or drinks before taking an oral temperature.
• Mistakes to Avoid: Not waiting long enough after physical activity, which can raise body temperature and result in a false high reading.

Case Studies

Evidence from Real-Life Implementations

• Case studies have demonstrated various benefits of regular health monitoring, especially through remote patient monitoring (RPM) systems. For instance, an electronic surveillance patient monitoring system implemented in a healthcare center about 15 years ago showed that out of 111,488 monitored patients, none died from opioid-induced respiratory depression a significant contrast to the three out of 15,209 unmonitored patients who did die. Such systems can provide real-time health status via devices like ECGs and pulse oximeters, alerting clinicians to necessary interventions and potentially preventing health deterioration (HIMSS).

Systematic Review Findings

• A systematic review of RPM showed that it was particularly effective for patients with cardiovascular diseases (CVD) and chronic obstructive pulmonary disease (COPD). The use of RPM was associated with reduced hospital admissions, shorter lengths of stay, and fewer emergency department presentations, indicating its effectiveness in improving patient outcomes and reducing healthcare use (BMJ Open).

Safety and Maintenance

Taking good care of your medical tools is just as important as using them right. By following these guidelines, healthcare professionals can ensure that their diagnostic tools are always ready for use, providing reliable service for years to come.

Welch Allyn Blood Pressure Monitors

• Cleaning: The cuff should be wiped with a mild disinfectant, and the monitor can be gently cleaned with a soft cloth.
• Maintenance: Regular calibration is necessary to ensure accuracy, and the tubing should be checked for any signs of wear.
• Safety: It's important not to overinflate the cuff to avoid patient discomfort or damage to the monitor.
• Storage: Lay the cuff flat and store the monitor in a dry, temperate place.
• What to Avoid: Avoid folding the cuff tightly which can cause creases that affect readings.

Welch Allyn Ophthalmoscopes & Retinoscopes

• Cleaning: Clean lenses with specialized lens cleaning tissues to prevent scratching, and use a disinfectant on the handle.
• Maintenance: Replace bulbs as needed, and ensure battery contacts are clean for a reliable power supply.
• Safety: When examining patients, use the instrument gently to prevent any contact that could cause discomfort or injury.
• Storage: Keep these instruments in their cases, in a cool and dry area, to protect sensitive optical components.
• What to Avoid: Do not use regular paper or fabric towels on lenses, as they can leave residues or scratches.

Welch Allyn Otoscopes

• Cleaning: After each use, disposable specula should be discarded, and reusable ones should be cleaned with an approved disinfectant.
• Maintenance: Regular checks on the light source and battery are essential for consistent performance.
• Safety: Gentle insertion of the speculum is key to prevent causing any damage to the patient's ear canal.
• Storage: The otoscope should be placed in its holder or a padded case to prevent accidental damage.
• What to Avoid: Avoid using the otoscope with a low battery, as inadequate lighting can lead to misdiagnosis.

Littmann Stethoscopes

• Cleaning: Diaphragms can be wiped with alcohol, while tubing can be cleaned with a mild soap solution.
• Maintenance: Ear tips should be secured and checked for signs of degradation over time.
• Safety: Ensure the sound level is appropriate, especially when using electronic models, to protect both patient and user hearing.
• Storage: Hang or coil the stethoscope without tight bends to maintain the shape and integrity of the tubing.
• What to Avoid: Keep the stethoscope away from extreme temperatures to prevent damage to the tubing and diaphragm.

ADC Thermometers

• Cleaning: Alcohol wipes are best for cleaning the probe, and for non-contact models, the sensor should be kept clean with a soft, dry cloth.
• Maintenance: Verify the accuracy of the thermometer at regular intervals, and ensure it is functioning correctly before use.
• Safety: Always use probe covers if the model requires them to maintain hygiene.
• Storage: Store the thermometer in its protective case and place it in an area where it is easily accessible for quick temperature assessments.
• What to Avoid: Avoid exposing the thermometer to direct sunlight or extreme environmental conditions which could affect its accuracy.

Choosing the Right Diagnostic Set

When you're in the market for a diagnostic set, whether it's a Welch Allyn diagnostic set or another brand, here's what you should consider:

• Quality: A high-quality diagnostic kit means more accurate results and better durability.
• Range of Components: Look for a set with a good otoscope, ophthalmoscope, stethoscope set, and other essentials.
• Ease of Use: You'll want a diagnostic set that's simple to handle, especially if you're not a medical professional.
• Reliability: The best otoscope and ophthalmoscope set will come from reputable brands known for their reliability.
• Cost: Consider whether the price matches the value you'll get from the diagnostic kit.
• Customer Support: Good customer service can be crucial if you need help with your Welch Allyn diagnostic kit.

Recommendations for Different Needs

• For Families: A comprehensive Welch Allyn medical diagnostic set can be versatile enough to cater to both adults and children.
• For Individuals with Specific Health Concerns: If you have particular health issues, like hearing problems, an otoscope otoscope set might be more beneficial.
• For Health Enthusiasts: An all-in-one Welch Allyn standard diagnostic set can satisfy those who are keen on having professional-grade tools.

Product Description

Product	Type	Key Feature	Included Components	Brand
Welch Allyn 777 Integrated Diagnostic System	Diagnostic Wall System	Integrated design with handles for multiple instruments	Otoscope, Ophthalmoscope	Welch Allyn

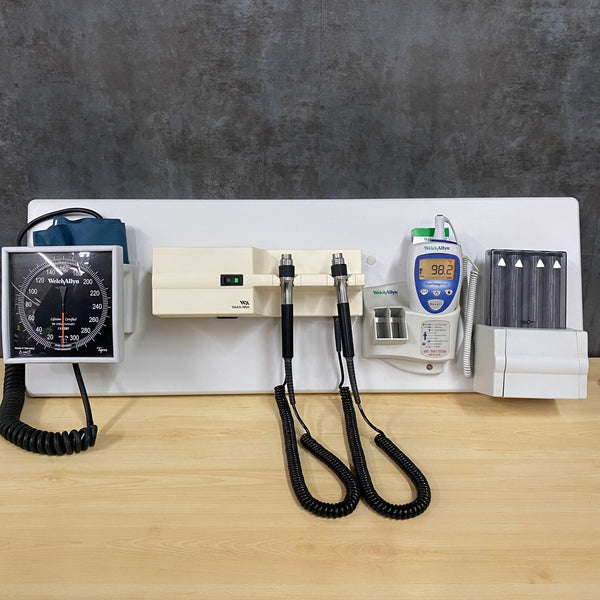

Welch Allyn 767 Integrated Diagnostic System	Diagnostic Wall System	Traditional, reliable model with sturdy construction	Otoscope, Ophthalmoscope	Welch Allyn

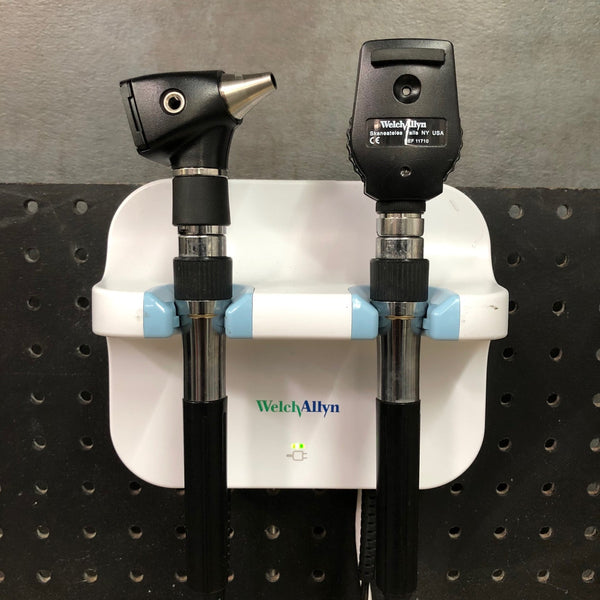

Welch Allyn Wall Transformer	Power Source	Convenient power source for diagnostic instruments	Transforms power for otoscopes and ophthalmoscopes	Welch Allyn

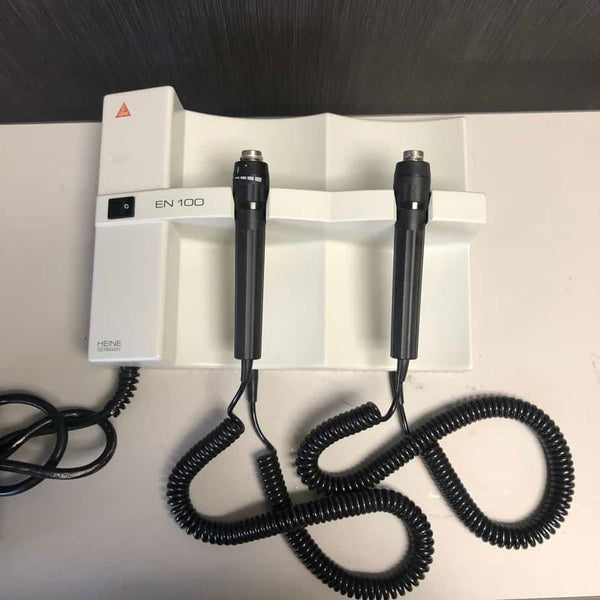

Heine EN 100 Wall Transformer	Power Source	Compact design, adjustable brightness control	Powers Heine diagnostic instruments	Heine

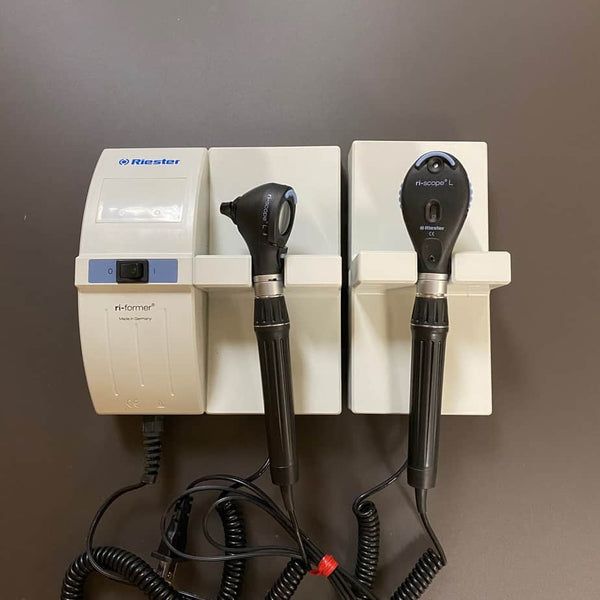

Riester Ri-former Wall Mounted Diagnostic Station	Diagnostic Wall System	Modular system with extension capabilities	Otoscope, Ophthalmoscope, Blood pressure monitor (optional)	Riester

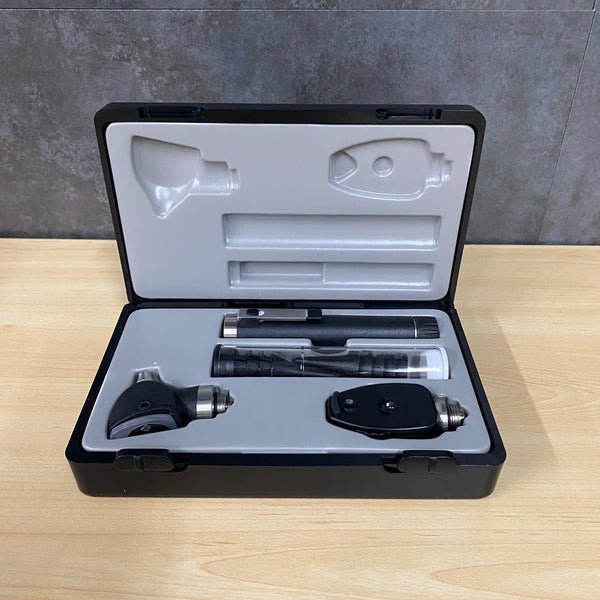

ADC Otoscope Ophthalmoscope Set	Portable Diagnostic Set	Portable, comprehensive examination tools	Otoscope, Ophthalmoscope, Hard case	ADC
Welch Allyn 18320 Diagnostic Set	Portable Diagnostic Set	Portable set with high-quality instruments	Otoscope, Ophthalmoscope, Hard case	Welch Allyn

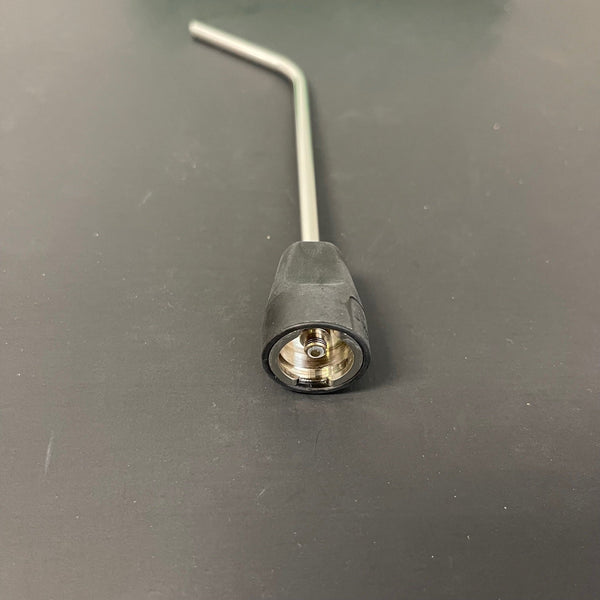

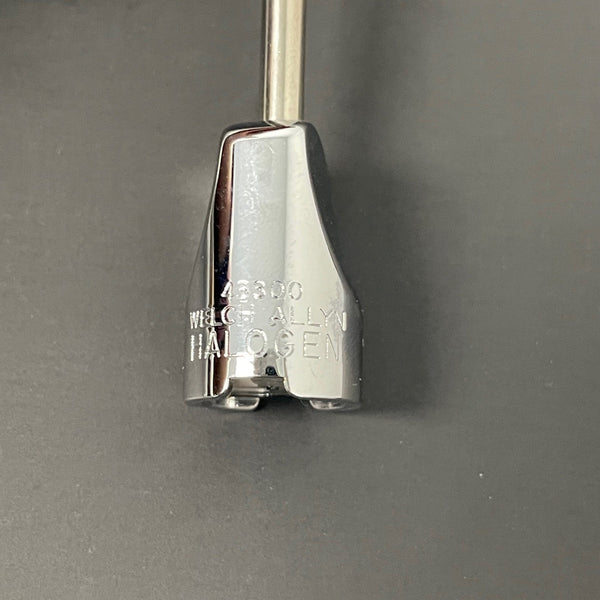

Welch Allyn 43300 Transilluminator	Examination Light	High-intensity light for tissue illumination	Transilluminator alone	Welch Allyn
ADC Adlite Pro 355Bk Led Pocket Light	Examination Light	LED light, pocket-sized design	LED Pocket Light	ADC

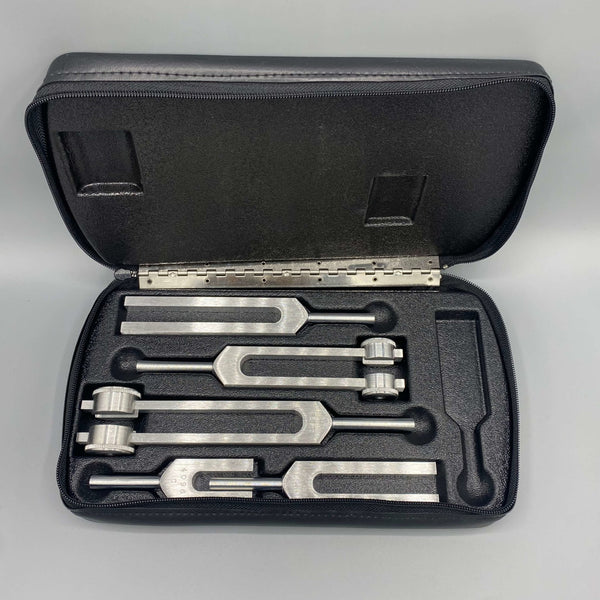

Crown Tuning Forks set 5	Auditory Testing Tools	Range of frequencies for hearing and vibration testing	5 tuning forks	Crown



Understanding Medical Readings

Navigating through medical readings from various diagnostic tools can be daunting, but it's crucial to understand what these numbers signify for effective health monitoring. Here’s a basic guide on interpreting some common medical readings and knowing when it's time to seek professional advice.

Interpretation of Results

Blood Pressure Numbers

• Systolic Pressure (the top number): Indicates the pressure in your arteries when your heart beats. A normal systolic pressure is typically between 90 and 120 mmHg.
• Diastolic Pressure (the bottom number): Shows the pressure in your arteries between heartbeats. A normal diastolic pressure is usually between 60 and 80 mmHg.

Interpreting the Numbers

• Normal: Less than 120/80 mmHg
• Elevated: 120-129/<80 mmHg
• Hypertension Stage 1: 130-139/80-89 mmHg
• Hypertension Stage 2: 140+/90+ mmHg
• Hypertensive Crisis: Over 180/120 mmHg – urgent medical attention needed.

Temperature Readings

Normal Body Temperature: Typically around 98.6°F (37°C) but can range from 97°F to 99°F (36.1°C to 37.2°C).

Fevers

• Mild Fever: 99.5–100.9°F (37.5–38.3°C)
• Moderate Fever: 101–103.5°F (38.4–39.7°C)
• High Fever: Above 103.5°F (39.7°C)
• Interpreting Fever: Persistent high fevers or fevers accompanied by serious symptoms (like severe headache, stiff neck, rash, etc.) necessitate a consultation with a healthcare provider.

Heart Rate

• Normal Range: 60-100 beats per minute (bpm) for adults.
• Tachycardia: Above 100 bpm at rest.
• Bradycardia: Below 60 bpm at rest.
• Interpreting Heart Rate: Consistently high or low rates, or rates that are irregular, can indicate underlying health issues.

Respiratory Rate

• Normal for Adults: 12-16 breaths per minute.
• Abnormal Readings: More than 20 breaths per minute or fewer than 12 might indicate breathing problems or other health issues.

When to Consult a Professional

• Blood Pressure: Consult a healthcare professional if readings consistently fall into the hypertension range or change significantly from your normal range.
• Temperature: Seek medical attention if you have a fever higher than 103°F (39.4°C), a fever lasting more than three days, or a fever with severe symptoms like confusion, stiff neck, or difficulty breathing.
• Heart Rate: Medical advice is recommended if you experience palpitations, a rapid heartbeat that starts suddenly, or a slow heartbeat with symptoms like dizziness or fainting.
• Respiratory Rate: Contact a doctor if you have persistent shortness of breath, a significantly increased respiratory rate, or are using accessory muscles to breathe (muscles in your neck or between your ribs).

Understanding these basics can help you monitor your health effectively with your Welch Allyn diagnostic set and determine when professional advice is necessary. It’s always better to err on the side of caution and consult with a healthcare provider if you notice any unusual or persistent changes in your medical readings.

Advice for Different Demographics

When it comes to health monitoring with diagnostic tools, the approach can vary greatly depending on the user's age and lifestyle. Young children and the elderly, for example, have different needs and sensitivities that require specific considerations. By tailoring the use of your Welch Allyn diagnostic set to the demographic, you ensure not only the comfort of the individual but also the effectiveness of each health check. Here’s how you can adapt these medical tools for elderly users and parents looking to monitor their children's health.

For Elderly Users

• Easy Handling: Choose a Welch Allyn diagnostic set with easy-grip handles for those with arthritis or hand strength issues.
• Readability: Large, clear displays on tools like blood pressure monitors and thermometers help with visibility.
• Comfort: Look for stethoscope sets with soft ear tips and blood pressure cuffs that are gentle on fragile skin.
• Accuracy: Elderly users should ensure that their diagnostic kits are calibrated regularly for accurate readings.
• Assistance: It may be beneficial to have a family member or caregiver present when using the diagnostic set to assist with proper usage and interpretation of results.

For Parents

• Engagement: Make health monitoring fun by using a pediatric stethoscope set with colorful designs to capture a child's interest.
• Education: Teach children about their health using simple terms with the otoscope and ophthalmoscope set, turning it into a learning activity.
• Distraction: Have a favorite toy or story ready when using the diagnostic kit to keep young ones distracted and calm.
• Gentleness: Ensure that the otoscope otoscope set is used gently to avoid any discomfort that might scare them off future checks.
• Routine: Incorporate the diagnostic set into a regular routine so it becomes a normal part of their life, just like brushing teeth.

Using a Welch Allyn medical diagnostic set can be adjusted to suit the needs of different age groups, ensuring that everyone from the elderly to the very young can benefit from regular health checks. Whether it's the comprehensive Welch Allyn standard diagnostic set or specific instruments like an otoscope set, these tools can be invaluable for health monitoring when adapted to the user's requirements.

Frequently Asked Questions

What should I do if a device in my diagnostic set stops working?

First, check the batteries and replace them if needed. Make sure all connections are tight and the device is clean. If it still doesn’t work, look at the troubleshooting guide in the manual or contact customer support for help.

How often should I calibrate the devices in my diagnostic set?

You should calibrate your devices based on the manufacturer's recommendations, usually once a year. But, always check the manual for your specific diagnostic kit because different tools might need different care.

What are the signs that I might be using the stethoscope incorrectly?

If you can't hear body sounds clearly, make sure the earpieces point forward in your ears. Also, ensure you're using the correct side of the stethoscope set for the sounds you want to hear (heart versus lungs).

How can I ensure the most accurate readings from my blood pressure cuff?

Sit comfortably with both feet on the floor and rest your arm on a table at heart level for the best blood pressure readings. Don't talk or move during the measurement, and make sure the cuff fits well on your upper arm.

The readings on my device seem off, what could be causing this?

Make sure to use the device in a stable environment away from extreme temperatures, humidity, or electromagnetic fields. Also, ensure the device is placed on a stable surface and positioned correctly according to the instructions.

Can I fix a cracked part of my diagnostic set myself?

While you might be able to fix minor issues at home, it's usually better and safer to get a cracked part replaced by the manufacturer. This avoids further damage or inaccurate readings. Check your warranty to see if the parts are covered.

Why does my otoscope produce blurry images, and how can I fix it?

Blurry images from an otoscope might be because the lens is dirty. Clean the lens carefully with a soft, damp cloth. If it’s still blurry, make sure the lens is securely attached and not damaged, or follow the manufacturer’s guidelines for more troubleshooting.

Search by Category

Assisted Living

• Patient Lifts | Medical Recliner Chair | Wheel Chairs and Walkers

Cardiology

• Cardiology Equipment | Patient Vital Sign Monitor Accessories | Portable EKG Machine

Cosmetic Surgery

• Cosmetic Surgery Equipment | Lipo Suction Units | Liposuction Cannulas | Liposuction Pumps or Liposuction Systems

Dentistry

• Dental Chairs for Sale | Dentistry

Dermatology

• Lensmeters | Optical Chairs | Optical Instrument Stands | Optical Instrument Tables | Phoropters | Slit Lamps

Emergency Supplies

• Gloves | Masks | Nebulizers | Oxygen Systems | Sanitizers | Sharp Containers | Stainless Steel Trays

Endoscopy

• Endoscopic Surgery Equipment | Rigid Scopes | Surgical Scopes Endoscopes

ENT (Otolaryngology)

• ENT Chairs | ENT Instruments | ENT Otolaryngology Accessories

General Surgery

• Surgical Instruments | Surgical Microscopes | Surgical Obturator | Surgical Rongeurs | Surgical Clamps | Surgical Forceps | Surgical Dilators | Surgical Instruments Trays Sets | Surgical Case Carts | Surgical Needle Holders

Imaging Center

• Ultrasound Machine | Ultrasound Probes | Imaging Tables | X Rays C Arms and More | Visual Acuity Systems | Optical Coherence Tomography (OCT)

Medical Furniture

• Exam and Procedure Chairs | Manual Exam Tables | Power Exam Tables | Stretchers & Gurneys | Medical Exam Tables | Medical Office Furniture | Physician Stools | Medical Utility Carts | Medical Supply Cabinets | Medical Exam Room Cabinets | Medical File Cabinet

Medical Instruments

• Diagnostic Set | Stethoscope | Tonometers | Cryo Surgery Equipment | Colposcopes | Thermometers | Blood Pressure Monitors | Audiometers | Endoscopy Carts | Laryngoscopes | Otoscopes | Ophthalmoscope | Retinoscopes

Medical Lighting

• Medical Lighting | Examination Lights | Surgical Lights | Medical Headlights | Medical Lighting Accessories

Medical Supplies

• Medical Alcohol | Blood Drawing Chairs | IV Poles | Medical Hampers | Syringe Pumps | Uterine Suction Systems | Centrifuges | Medical Pads and Mattresses | Mayo Stands | Medical and Optical Light Bulbs | Medical Trash Cans

Orthopedics

• Orthopedics | Cast Cutters and Cast Vacuums | Arthroscope

Pediatrics

• Pediatric Tables | Pediatric Medical Supplies

Physical Therapy & Chiropractic

• Chiropractic Physical Therapy | Decompression Tables | Physical Therapy Treatment Table | Muscle Stimulators | Therapeutic Ultrasounds

Podiatry

• Podiatry | Podiatry Chairs

Surgical Accessories

• Arm Boards and Arm Rests | Surgical Curettes | Surgical Scissors | Bipolar Forceps | Surgical Needle Holders | Surgical Obturator

Urology

• Urology Tables and Chairs | Urology | Cystoscopes | Uterine Suction Systems

Veterinary

• Veterinary Equipment

Other Medical Equipment

• Anesthesia Units | Medical Pumps | Infusion Pumps | Hydrocollators | Infiltration Pumps | Medical Cart Medical Cabinet | Medical Freezers | Medical Physician Scale | Medical Recliner Chair | Objective Lenses | Microscope Accessories | Hemocues | Radiuscopes | Ventilators | Autoclave Machine | Defibrillator Accessories | ECG/EKG Accessories | Smoke Evacuators | Anesthesia Accessories | Anesthesia Monitors | Examination Lights | Surgical Lights | Digital Display Systems | Equipment for Parts | Medical Computer on Wheels

Service and Repair

• Medical Equipment Calibration Services | Service and Repair | Medical Equipment Repair Service
